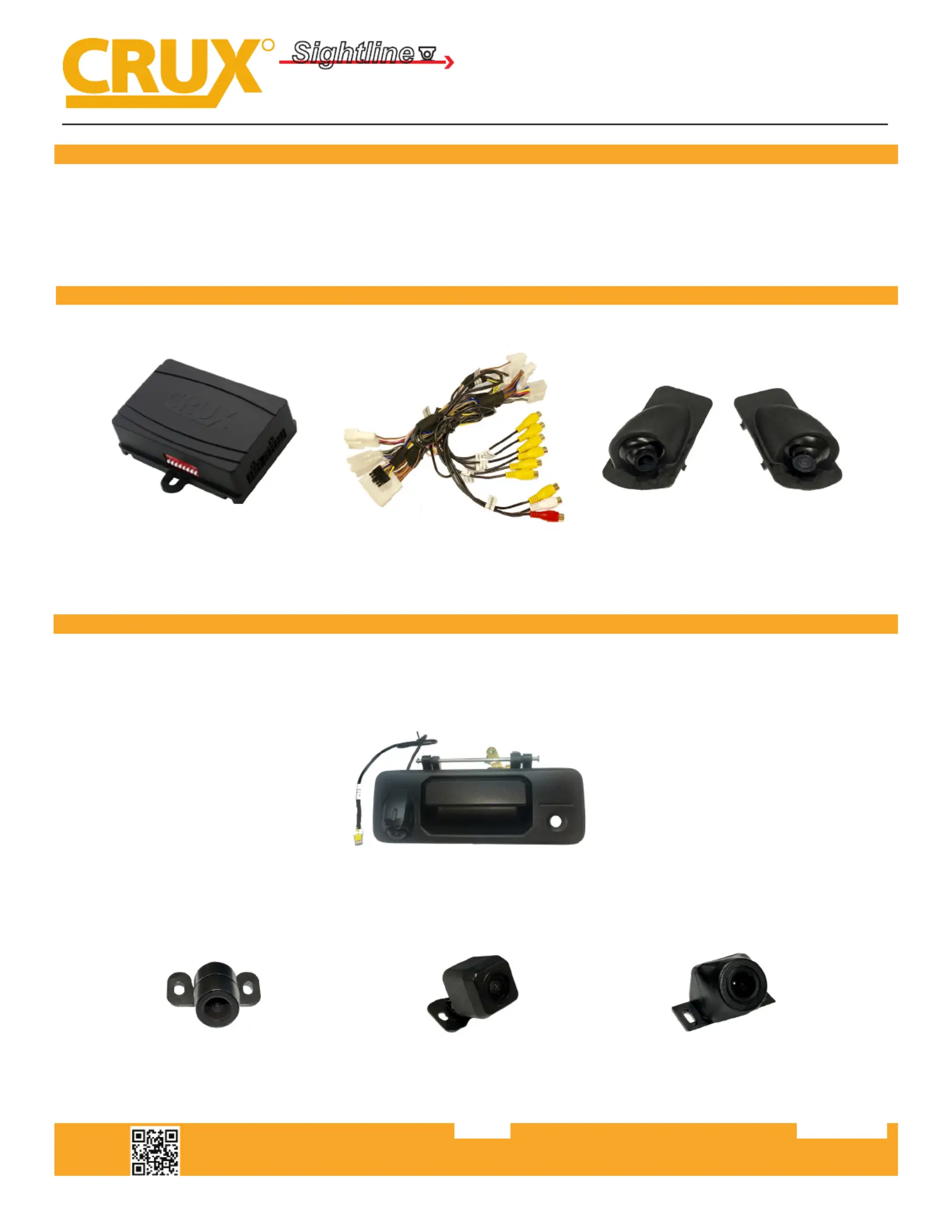

CTY-01T Tailgate Handle Camera
RFM-TUN
Multi View Integration Interface with A/V Input
and Side Mirror Mounted Cameras for Toyota Tundra
R
INTERFACING SOLUTIONS
Sightline
Multi View Integration
- Adds a reverse camera input, 6 video plus 1 audio/video inputs.
- Uses the steering wheel controls buîž©ons to toggle between the sources.
- Turn signals automaîžźcally triggers the corresponding side camera.
- Turn signal camera trigger can be turned on or oîś« by using the SWC buîž©on.
PRODUCT FEATURES:
PARTS INCLUDED:
RFM-TUN Module RFM-TUN Harness CSV-TUN Tundra Side Mirror Camera
OPTIONAL ADD-ON CAMERAS:
Opîžźonal add on cameras are available to complete the mulîžź-view capability of the RFM-TUN. Cameras available
and sold separately include: (More cameras can be found at www.cruxinterfacing.com)
CFF-01 Bullet Type Front Camera
(Recommended)
CFF-02 Square Body Front Camera CFF-03 Grille Mount Front Camera
Crux Interfacing Solutions • 21541 Nordhoff St., Unit C, Chatsworth, CA 91311
phone: (818) 609-9299 • fax: (818) 996-8188 • www.cruxinterfacing.com
1 of 5 rev.031820
INSTALLATION DIAGRAM:
R
INTERFACING SOLUTIONS
Sightline
Multi View Integration
DIP SWITCH SETTINGS:
DIP# ON OFF
1No Funcon – Leave OFF
2 Front Camera ON Front Camera OFF
3Le Camera ON Le Camera OFF
4 Right Camera ON Right Camera OFF
5 Cargo Camera ON Cargo Camera OFF
6 Trailer Camera ON Trailer Camera OFF
7AUX A/V ON AUX A/V OFF
8Set to OFF
RFM-TUN
Multi View Integration Interface with A/V Input
and Side Mirror Mounted Cameras for Toyota Tundra
Front Camera Input
Right Camera Input
Left Camera Input
Cargo Camera Input
Aftermarket Backup Camera Input
Trailer Camera Input
Audio/Video
Input
Front and Rear Camera Power Output +12V (purple/white)
Left and Right Camera Power Output +12V (green/white)
Cargo and Trailer Camera Power Output +12V (orange/white)
Right Turn Signal Input (grey/red)
Left Turn Signal Iput (pink/black)
To Vehicle Harness
28 PIN10 PIN 24 PIN
To Radio
Connect this 6-pin plug if OEM
backup camera is being used
DIP Switches
Crux Interfacing Solutions • 21541 Nordhoff St., Unit C, Chatsworth, CA 91311
phone: (818) 609-9299 • fax: (818) 996-8188 • www.cruxinterfacing.com
2 of 5 rev.031820
FORCED VIEW CAMERA SEQUENCE:
Using OEM backup Camera
FRONT CARGO TRAILER AV MODE
Using Aermarket backup Camera
FRONT BACKUP CARGO TRAILER AV MODE
R
INTERFACING SOLUTIONS
Sightline
Multi View Integration
OPERATION:
RFM-TUN
Multi View Integration Interface with A/V Input
and Side Mirror Mounted Cameras for Toyota Tundra
1. Remove the side mirrros by rst removing the corner
sail panels. Unplug the mirror harness.
2. Remove tbe OEM side mirror camera cover and run
the CSV-TUN camera cable through the harness hole.
3. Remove the screws on the interior door handle and door
pull.
4. Remove the window controls and unhook the door
panel by pulling it upward.
5. Fish the camera cable through the wiring boot for a
clean look. Run the cable to the module and plug them in.
6. Tuck in the camera cable inside the cavity and snap in
the CSV-TUN side mirror cover with camera.
Side Mirror Mounted Camera Installaîžźon:
Crux Interfacing Solutions • 21541 Nordhoff St., Unit C, Chatsworth, CA 91311
phone: (818) 609-9299 • fax: (818) 996-8188 • www.cruxinterfacing.com
3 of 5 rev.031820
