Page 1/5
CDR-31C Cargo Camera CDR-02 Tailgate
Handle Camera
Jeep Wrangle Spare Tire
Mount Camera
CUB-15 Adjustable
Angle Side Camera
RFM-MG1
Multi View Integration Interface with A/V Input for
CHRYSLER, DODGE, JEEP & RAM Vehicles with MyGig Radios
R
INTERFACING SOLUTIONS
Sightline
Multi View Integration
Crux Interfacing Solutions • 21541 Nordhoff St., Unit C, Chatsworth, CA 91311
phone: (818) 609-9299 • fax: (818) 996-8188 • www.cruxinterfacing.com
rev.012819
1 of 5
- Adds a reverse camera input, 6 video plus 1 audio/video inputs.
- Uses the steering wheel controls buîž©ons to toggle between the sources.
- Turn signals automaîžźcally triggers the corresponding side camera.
- Turn signal camera trigger can be turned on or oîś« by using the SWC buîž©on.
PRODUCT FEATURES:
PARTS INCLUDED:
RFM-MG1 Module RFM-MG1 Harness
OPTIONAL ADD-ON CAMERAS:
Opîžźonal add on cameras are available to complete the mulîžź-view capability of the RFM-MG1. Cameras available
and sold separately include: (More cameras can be found at www.cruxinterfacing.com)
CFF-01 Bullet Type Front
Camera
CFF-02 Square Body Front
Camera
CFF-03 Grille Mount Front
Camera
CUL-16 Universal Lip Mount
Camera
Crux Interfacing Solutions • 21541 Nordhoff St., Unit C, Chatsworth, CA 91311
phone: (818) 609-9299 • fax: (818) 996-8188 • www.cruxinterfacing.com
rev.0128192 of 5
INSTALLATION DIAGRAM:
R
INTERFACING SOLUTIONS
Sightline
Multi View Integration
Front Camera Input
Right Camera Input
Left Camera Input
Cargo Camera Input
Aftermarket Backup Camera Input
Trailer Camera Input
Audio/Video
Input
Front and Rear Camera Power Output 12V (purple/white)
Left and Right Camera Power Output 12V (green/white)
Cargo and Trailer Camera Power Output 12V (orange/white)
Video AUX Power Output 12V (red/white)
To Vehicle Harness
To Radio
Connect this 6-pin plug if OEM
backup camera is being used
DIP SWITCH SETTINGS:
DIP# ON OFF
1No Funcon – Leave OFF
2 Front Camera ON Front Camera OFF
3Le Camera ON Le Camera OFF
4 Right Camera ON Right Camera OFF
5 Cargo Camera ON Cargo Camera OFF
6 Trailer Camera ON Trailer Camera OFF
7 AUX A/V ON AUX A/V OFF
8 Set to ON
RFM-MG1
Multi View Integration Interface with A/V Input for
CHRYSLER, DODGE, JEEP & RAM Vehicles with MyGig Radios
Crux Interfacing Solutions • 21541 Nordhoff St., Unit C, Chatsworth, CA 91311
phone: (818) 609-9299 • fax: (818) 996-8188 • www.cruxinterfacing.com
rev.012819
3 of 5
R
INTERFACING SOLUTIONS
Sightline
Multi View Integration
OPERATION:
RFM-MG1
Multi View Integration Interface with A/V Input for
CHRYSLER, DODGE, JEEP & RAM Vehicles with MyGig Radios

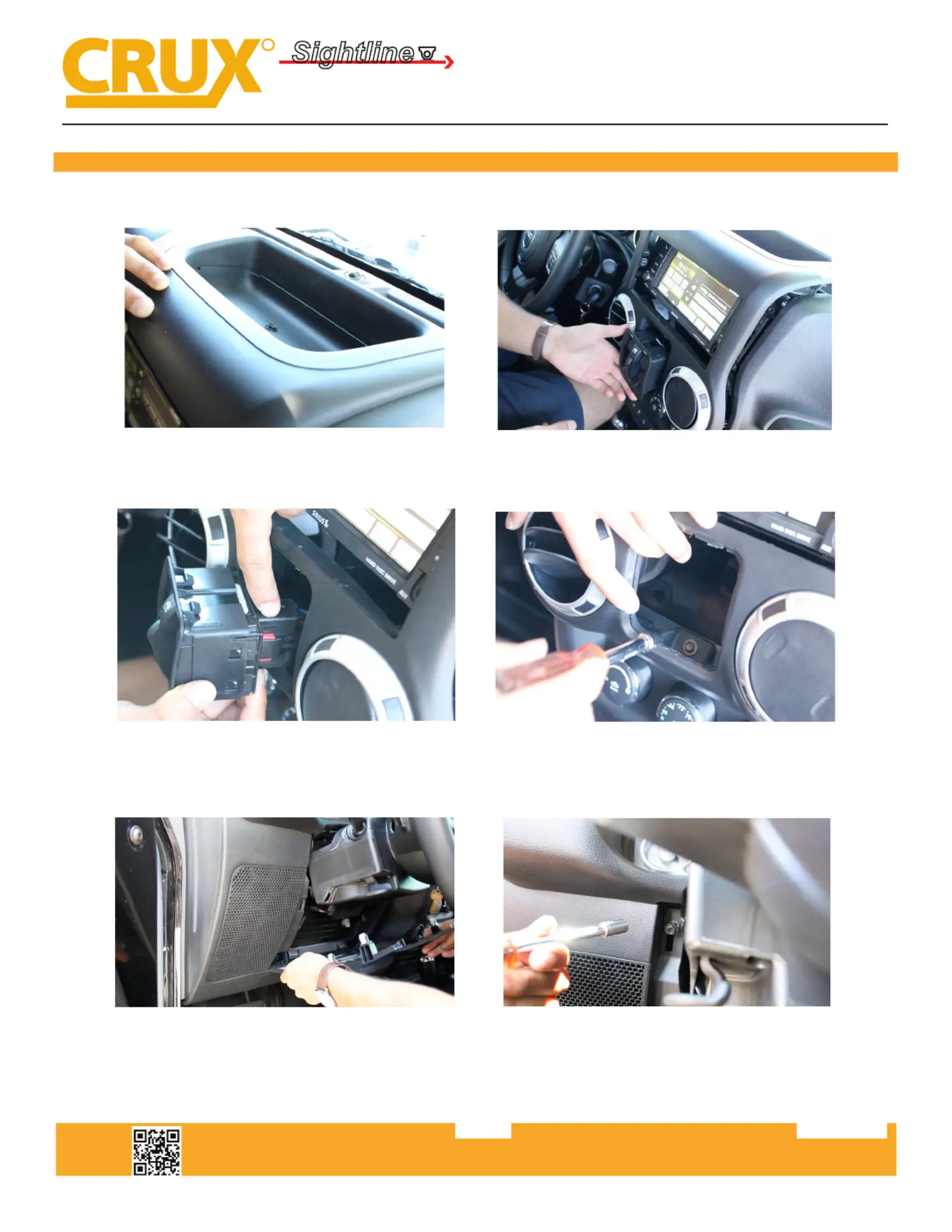

1. Remove the rubber lining on the compartment on the
dashboard. Remove one screw.
2. Carefully pry out the power window switch assembly.
3. Unplug the power window switch connector. 4. Remove the screw behind the power window switch
housing.
5. Remove the lower panel under the steering wheel
column.
6. Remove the screw holding the upper dash trim panel.
Installaîžźon example is on a 2016 Jeep Wrangler. Other vehicle installaîžźon will vary.
