Chauvet Ground Stack Kit Manual
Read below 📖 the manual in Italian for Chauvet Ground Stack Kit (44 pages) in the Monitor category. This guide has been helpful for 5 people and has been rated 4.5 stars on average by 2 users
Page 1/44
English EN
Español ES
Français FR
Deutsch DE
Nederlands NL
Quick Reference Guide
Model ID: GROUNDSTACKKIT
Scan the QR code to
access the product page,
warranty terms, and the
complete User Manual

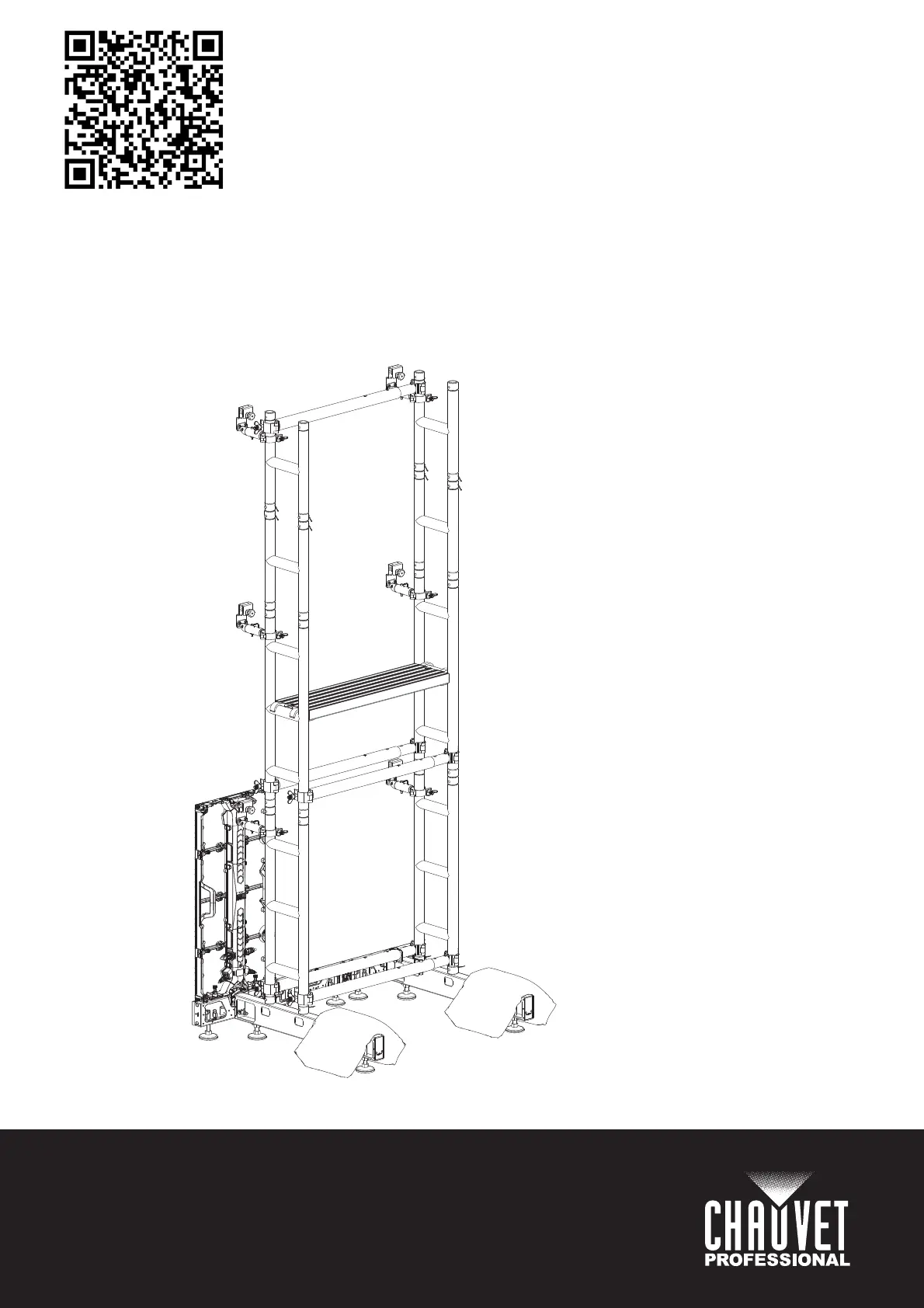

Ground Stack Kit
Multi-Language
QUICK REFERENCE GUIDE
Intentionally Left Blank Page
1
EN
QUICK REFERENCE GUIDE
Ground Stack Kit QRG Rev. 1
Safety Notes
These Safety Notes include important information about installation, use, and maintenance of the Ground Stack Kit.
What is Included
• CAUTION:
• This product contains no user-serviceable parts.
• The climbing platform can support up to 250lbs.
• Only qualified and competent persons should use the climbing platform.
• The ballast weights stated in this specification are for indoor usage only. If this kit is used outdoors, the
unit must be protected from wind and additional ballast (as determined by a qualified and competent
rigger) must be used.
• This product should only be used by competent and qualified persons.
• ALWAYS:
• Use adequate safety hardware to prevent injury from falling.
• Ensure that the floor structure is stable and immobile.
• When selecting an installation location, consider ease of access for operation and routine maintenance of
attached panels.
• DO NOT:
• Submerge this product (adhere to standards for the published IP rating). Regular outdoor operation is fine.
• Use the kit if any welded joints are cracked or appear damaged in any way.
• Permanently install outdoors in locations with extreme environmental conditions. This includes, but is not
limited to:
• Exposure to a marine/saline environment (within 3 miles of a saltwater body of water).
• Locations where normal temperatures exceed the temperature ranges in this manual.
• Locations that are prone to flooding or being buried in snow.
• Other areas where the product will be subject to extreme radiation or caustic substances.
• 1 Customized road case (ships prepacked)
• 2 Floor bars
• 6 Panel attachment arm
• 5 Ladder pipe with clamp
• 4 0.5M truss
• 4 1m truss
• 8 TR16 screw jack
• 1 climbing platform
• 13 M12 F-series cabinet screws
• 6 REM bracket
• 13 truss double sided connector AL6063
• 25 truss pins with clip
• 1 6in bubble level
• Quick Reference Guide
Product Specifications
| Brand: | Chauvet |
| Category: | Monitor |
| Model: | Ground Stack Kit |
