DA11ADE QUICK REFERENCE GUIDE
01
Contact: support@blustream.com.au support@blustream-us.com support@blustream.co.uk| |
Our DA11ADE has been designed to decode two Dante® digital signals to two
unbalanced or balanced analogue audio channels. The DA11ADE is a plug & play
device that is powered using either PoE (Power Over Ethernet) from any PoE
network switch or via local a 12V power supply input. The DA11ADE also supports
AES67 RTP audio transport.
Introduction
DA11ADE
Quick Reference Guide
• Decodes two Dante® digital signals to two unbalanced or balanced analogue audio channels
• Supports 44.1, 48 & 96 KHz sample rates @ 24 Bit
• Configurable Dante® device latency (supports 1, 2 or 5ms configurable using Dante® Controller)
• Supports AES67 RTP audio transport
• Features Class 3 802.3af PoE for powering of product from any PoE switch
• Local 12V power supply input for when network switch does not support PoE*
* PS121PH power supply sold separately
FEATURES:
Connections:
1 Dante® Audio Input - RJ45 socket connects Dante® network.
2 DC Input - Connect to +12VDC power supply (not supplied) if
device is not powered via a PoE switch
3 Audio Output - Phoenix Connector accepts balanced or
unbalanced 2 channel audio output.
Front Panel
1
Rear Panel
3
Wiring Configuration
Balanced - XLR Unbalanced - RCA
+
-
-
+
2
DA11ADE QUICK REFERENCE GUIDE
02 www.blustream.com.au | www.blustream-us.com www.blustream.co.uk|
Dante Controller
Dante Controller soware is required in order to setup and configure the DA11ADE as well as control your Dante
network. Audinate provide extensive training videos and documentation on their website. This can be found here:
http://www.audinate.com/products/soware/dante-controller
Upon connecting your DA11ADE to a compatible network, the Dante Controller soware should automatically
discover the device. The DA11ADE will appear in the Dante Controller with a name denoted with “BLS”. On the
“Routing” screen you can create audio routing between Dante transmitters and receivers in your system.
Please ensure your PC is on the same network as your Dante devices. Dante is not able to transmit over WiFi and it
is recommended to hardwire into the Dante network. Having multiple network devices enabled can also confuse
the Dante Controller soware so it is recommended to disable WiFi during configuration.
By default the DA11ADE is shipped with its network settings set to obtain an IP Address automatically. This means
that if a DHCP server is present on your network, it will provide the DA11ADE with an IP Address. If no DHCP server
is present then the DA11ADE will receive a default IP Address in the 169.254.xxx.xxx range. To change the IP Address
of the DA11ADE, you must enter the “Network Config” menu in the “Device Info” screen of the Dante Controller
soware.
DA11ADE QUICK REFERENCE GUIDE
03
Contact: support@blustream.com.au support@blustream-us.com support@blustream.co.uk| |
RevC0_QRG_DA11ADE_Working

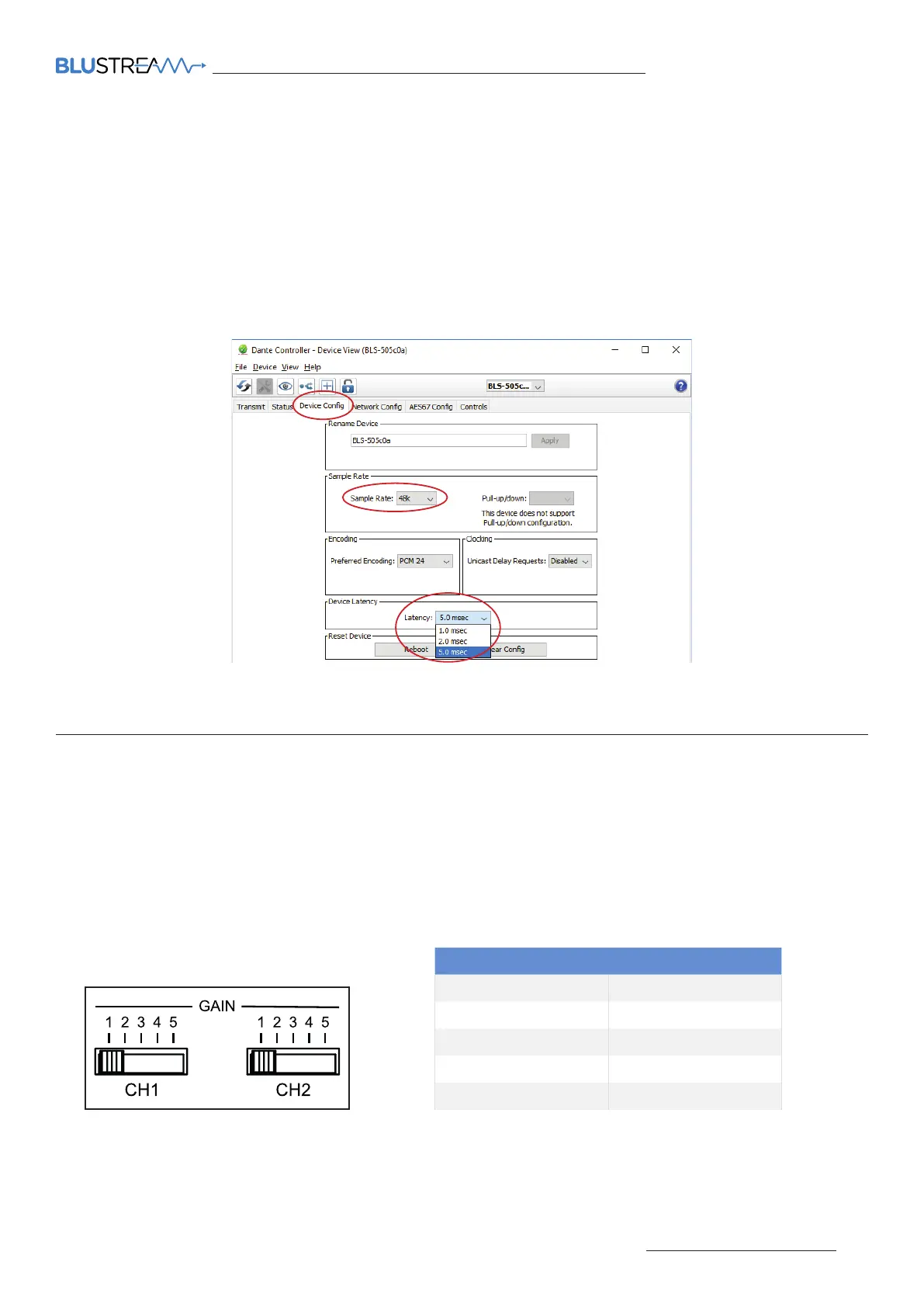

Advanced Dante Settings
It is also possible to change the settings of the DA11ADE under the “Device Info” screen in the Dante Controller
soware. To do so, select the “Device Config” menu.
Here we can adjust the sample rate of the DA11ADE. Please note that Dante products can only transmit or receive
audio from other Dante products that are set up with the same sample rate. A mismatch in sample rate may stop
audio from transmitting.
Under the “Device Config” screen we can also adjust the latency of the DA11ADE from 1, 2 or 5 milliseconds.
SWITCH POSITION OUTPUT GAIN
1 +18dBu
2 +4dBu
3 +0dBu
4 0dBV
5 -10dBV
Depending on the connected audio device, it may be necessary to adjust the output gain.
The DA11ADE features a 5 pin switch on the side of the device to adjust the gain of each channel from various
settings between +18dBu to -10dBV.
Output Gain Adjustment
Product Specifications
| Brand: | Blustream |
| Category: | Digital decoders |
| Model: | DA11ADE |
