AXBUCH-SB1
I N S TA L L A T I O N I N S T R U C T I O N S
AxxessInterfaces.com © COPYRIGHT 2022 METRA ELECTRONICS CORPORATION REV. 4/7/22 INSTAXBUCH-SB1
ATTENTION: With the key out of the ignition,
disconnect the negative battery terminal
before installing this product. Ensure that all
installation connections are secure before
cycling the ignition to test this product.
NOTE: Refer to the instructions included with
the aftermarket radio.
INTERFACE COMPONENTS
TOOLS & INSTALLATION ACCESSORIES REQUIRED
• Crimping tool and connectors
or
• Solder gun, solder, and heat shrink
• Tape
• Wire cutter
• Zip-ties
TABLE OF CONTENTS
Connections ............................................................2
Subaru (with 7" screen) 5-Pin Camera
Retention 2015-Up
Crosstrek 2016-2021, 2015-2021 Forester
Impreza 2015-2021, Legacy 2015-2019
Outback 2015-2016, XV Crosstrek 2015-2017
APPLICATIONS
Subaru
Crosstrek 2016-2021
Forester 2015-2021
Impreza 2015-2021
Legacy 2015-2019
Outback 2015-2016
XV Crosstrek 2015-2017

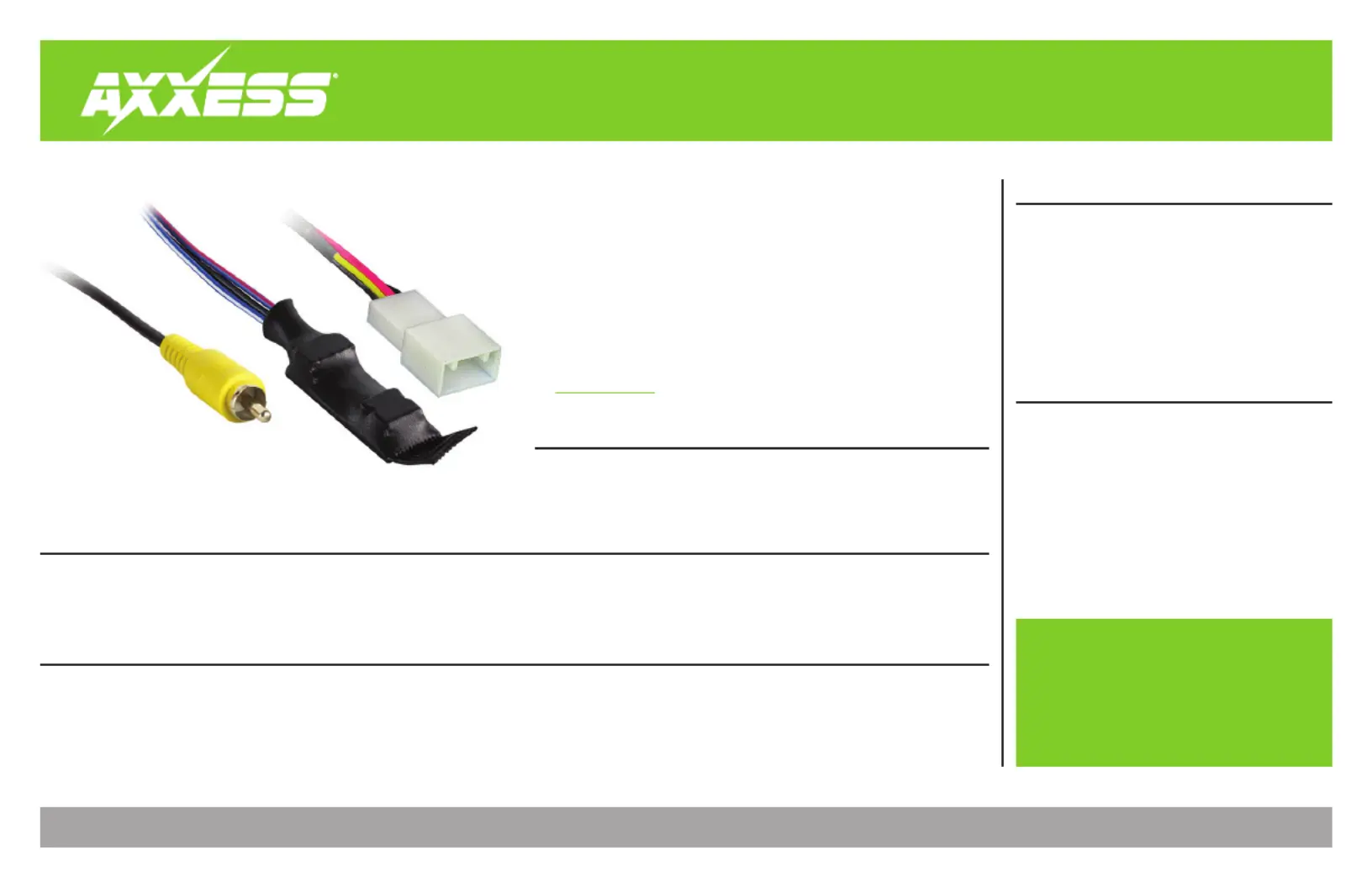

• AXBUCH-SB1
• AXCSD-6V 12-volt to 6-volt converter
Visit AxxessInterfaces.com for more detailed information about the product and up-to-date vehicle
specific applications
INTERFACE FEATURES
• Retains reverse camera when replacing with an aftermarket radio
• 6-volt power adapter included
2
CONNECTIONS
Connections to be Made From the (5) Pin Connector:
wire from the , and the wire from the Black AXBUCH-SB1 Black AXCSD-6V to chassis ground.
wire labeled Red Camera Power 6V Blue/Red” to the wire of the AXCSD-6V
Blue/White wire from the AXCSD-6V to Accessory Power
To the Aftermarket Radio:
• Connect the Yellow RCA jack to the backup camera input.
Note: The reverse wire from the aftermarket radio must be connected to the vehicle’s
reverse wire in order to function properly.
3
REV. 4/7/22 INSTAXBUCH-SB1
