AXESS 99-6537B Manual

Read below 📖 the manual in Italian for AXESS 99-6537B (16 pages) in the Not categorized category. This guide has been helpful for 4 people and has been rated 4.5 stars on average by 2 users

Page 1/16
Metra. The World’s Best Kits.® MetraOnline.com © COPYRIGHT 2023 METRA ELECTRONICS CORPORATION REV. 11/16/23 INST99-6537B
I N S TA L L AT I O N I N S T R U C T I O N S
99-6537B
Patent # 10,579,232
ATTENTION: With the key out of the ignition, disconnect
the negative battery terminal before installing this
product. Ensure that all installation connections,
especially the air bag indicator lights, are plugged in
before reconnecting the battery or cycling the ignition
to test this product.
NOTE: Refer also to the instructions included with the
aftermarket accessory before installing this device.
KIT FEATURES
• ISO DIN radio provision with pocket
• ISO DDIN radio provision
• Touchscreen display for climate and personalization features
• Painted Black
KIT COMPONENTS
• A) Radio trim panel with touchscreen display • B) Radio brackets • C) Pocket • D) #8 x 3/8" Phillips screws (4) • E) Panel clips (6)
• F) Antenna adapter (not shown)
TOOLS REQUIRED
• Panel removal tool • Phillips screwdriver • 9/32" socket wrench • 5.5mm socket wrench
TABLE OF CONTENTS
Dash Disassembly 2 ..................................................
Kit Preparation 2 .......................................................
Kit Assembly
–ISO DIN radio provision with pocket 3 ..................
–ISO DDIN radio provision 3 ....................................
Axxess Interface Installation 4-13 ...........................
Final Assembly 8 .......................................................
WIRING & ANTENNA CONNECTIONS
Wiring Harness: Axxess interface built
into touchscreen
Antenna Adapter: Included with kit
Steering wheel control interface: Included with kit
A B C D
E
Dodge Durango 2014-2020
Visit for more detailed information about the product and up-to-date vehicle specific applications.MetraOnline.com
Product Info
2386.257.1187
|
MetraOnline.com

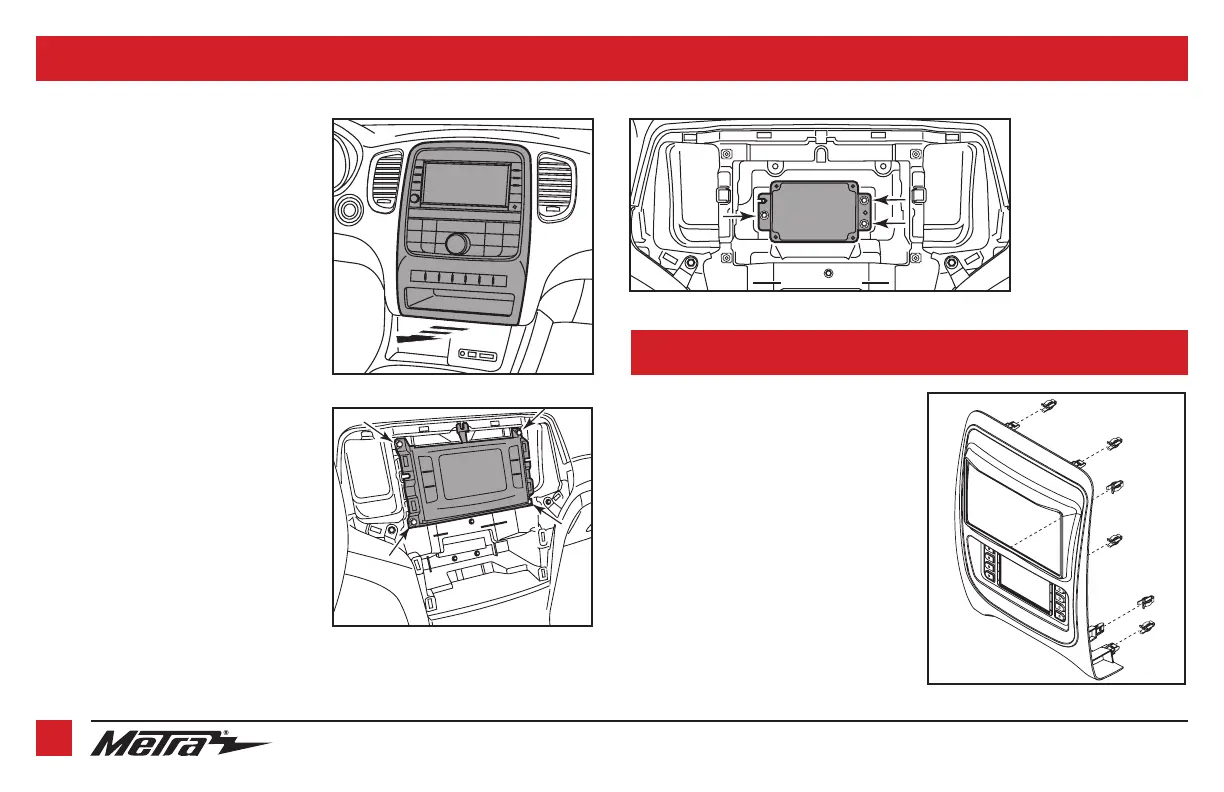

DASH DISASSEMBLY
1. Using the panel removal tool, gently
unclip, unplug, and remove the climate
control panel. (Figure A)
2. Remove (4) 9/32" screws securing the
radio/display screen, and then unplug
and remove. (Figure B)
3. Remove (3) 5.5mm screws securing the
black control module in the sub-dash,
and then relocate lower to allow
clearance for the aftermarket radio.
(Figure C)
Continue to Kit Preparation
(Figure A)
(Figure A)
To the 99-6537CH radio trim panel:
1. panel clips Attach the (6) provided in
this kit. (Figure A)
Continue to Kit Assembly
(Figure B)
KIT PREPARATION
(Figure C)
REV. 11/16/23 INST99-6537B 3
KIT ASSEMBLY
(Figure A)
(Figure B)
(Figure A)
ISO DIN radio provision with pocket
1. radio brackets Attach the pocket to the
using the (4) #8 x 3/8" Phillips screws
provided in this kit. (Figure A)
2. Remove the metal DIN sleeve and trim
ring from the aftermarket radio.
3. Slide the radio into the bracket/pocket
assembly, then secure it using the
screws supplied with the radio.
(Figure B)
Continue to Axxess Interface Installation
ISO DDIN radio provision
1. radio brackets Attach the to the radio
using the screws supplied with the
radio. (Figure A)
2. Reconnect the negative battery terminal
and prepare for the Axxess interface
installation.
Continue to Axxess Interface Installation

Product Specifications

Brand: AXESS
Category: Not categorized
Model: 99-6537B
