Metra. The World’s Best Kits.® MetraOnline.com © COPYRIGHT 2019 METRA ELECTRONICS CORPORATION REV. 5/15/19 INST99-5719
I N S TA L L AT I O N I N S T R U C T I O N S
99-5719
Attention! Let the vehicle sit with the key
out of the ignition for a few minutes before
removing the factory radio. When testing the
aftermarket equipment, ensure that all factory
equipment is connected before cycling the
key to ignition.
KIT FEATURES
DIN radio provision with pocket
ISO DIN radio provision with pocket
ISO DDIN radio provision
Integrated auto climate controls and display
Integrated passenger airbag light
Painted scratch resistant matte black
KIT COMPONENTS
• A) Radio housing • B) ISO Brackets • C) ISO trim plate • D) Pocket • E) ISO DDIN brackets • F) ISO DDIN trim plate • G) Temperature sensor housing
• H) Wiring harness (not shown) TOOLS REQUIRED
• Radio removal tool (Metra part #86-5618)
• Phillips screwdriver • Panel removal tool
• Cutting tool • T-10 torx screwdirver
TABLE OF CONTENTS
Dash Disassembly ..................................................2
Kit Preparation .......................................................3
Kit Assembly
–DIN radio provision with pocket ........................4
–ISO DIN radio provision with pocket ..................5
–ISO DDIN radio provision .....................................6
Audio Wiring ..........................................................7
WIRING & ANTENNA CONNECTIONS
Wiring Harness: Included with kit
Antenna Adapter: Included with kit
A
F G
B C D E
Ford Taurus / Mercury Sable
(with auto climate) 2004-2007
Visit for more detailed information about the product and up-to-date vehicle MetraOnline.com
specific applications
1.800.221.0932
|
MetraOnline.com
2
DASH DISASSEMBLY

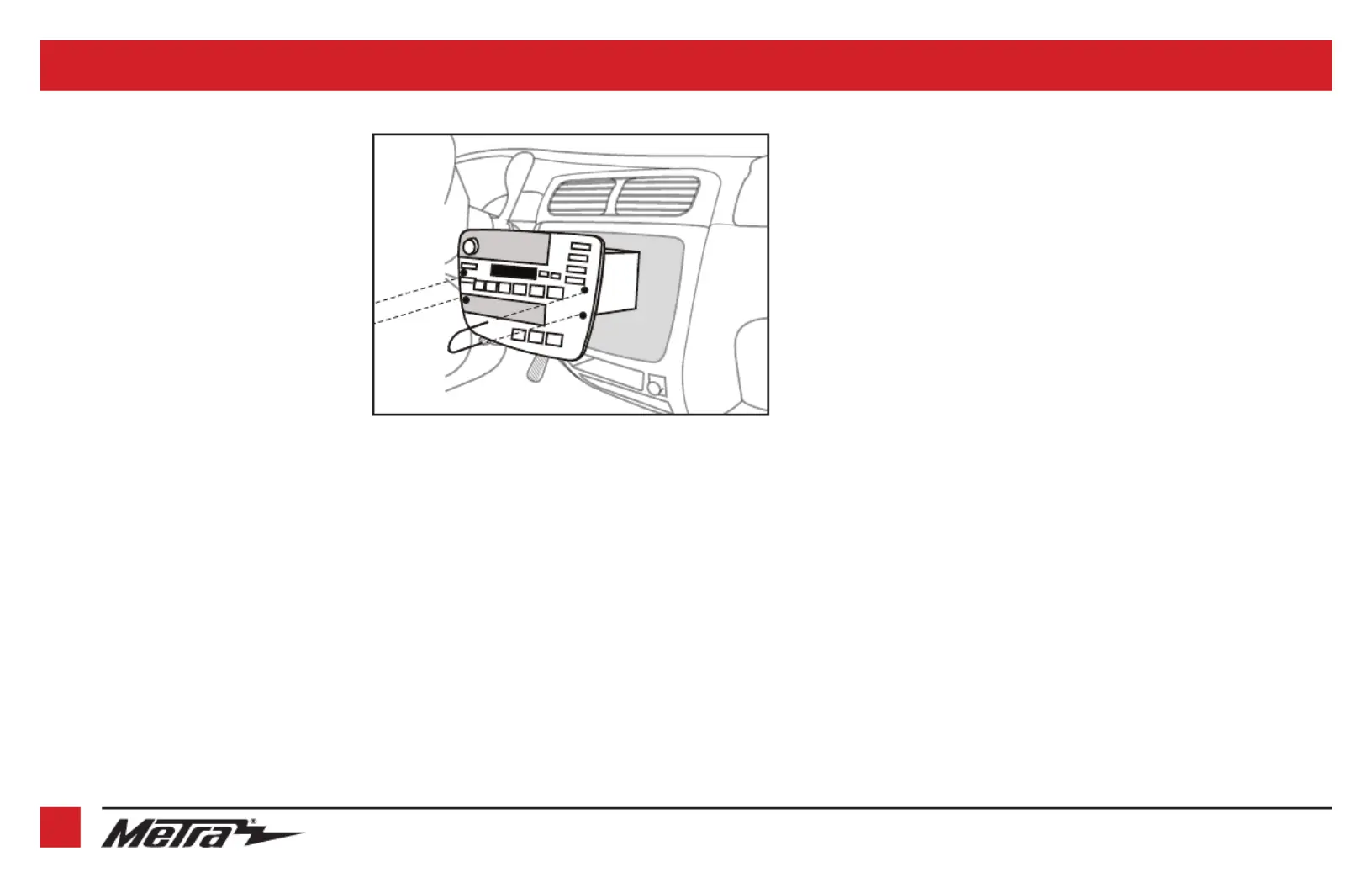

1. Using Metra’s 86-5618, pull the radio/
climate control panel from the dash.
(Figure A)
2. Disconnect the audio system connectors,
blower motor switch connector, vacuum
hose harness, a/c damper door switch
connector, and potentiometer connector.
Remove the panel.
Continue to Kit Preparation
(Figure A)
REV. 5/15/2019 INST99-5719 3
KIT PREPARATION
1. Remove the temperature sensor
assembly from the back of the radio/
climate control panel. Insert the
assembly into the temperature sensor
housing, then secure the assembly
under the dash. Ensure that the vent
opening is not blocked. This is what
monitors the temperature in the vehicle
for the climate control to function
properly.

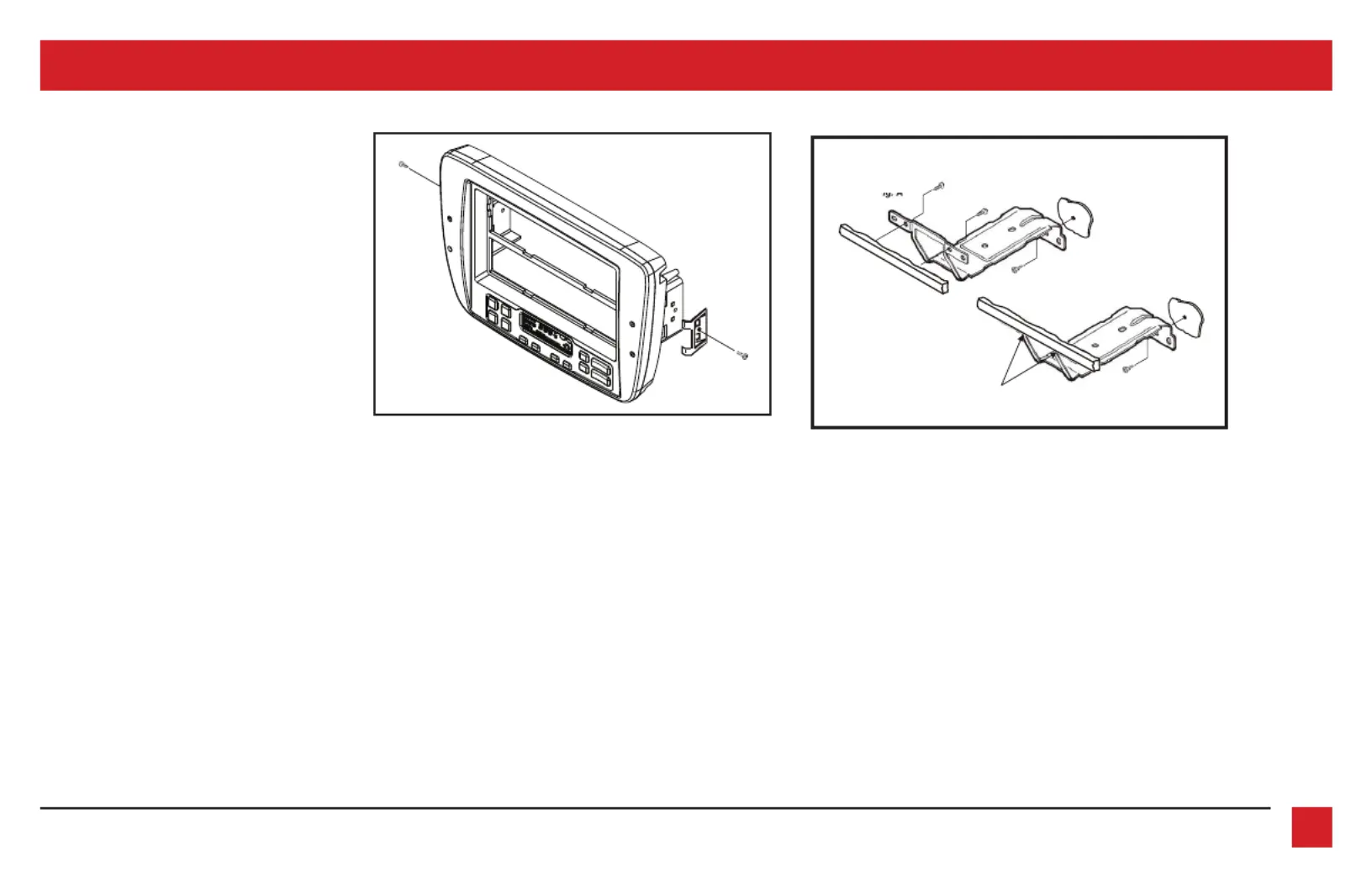

2. Remove (2) T-10 Torx screws securing the
mounting clips to the sides of the radio/
climate control panel, then remove the
clips. (Figure A)
3. Secure the clips to the radio housing
using the factory T-10 Torx screws.
4. Remove the factory rear support brace
in the sub-dash. (Figure B)
Continue to Kit Assembly
2Fig. A
Fig. B
Back
wall
Inside edge
of sub-dash
Inside edge
of sub-dash
Back
wall
(Figure B)
(Figure A)
