Metra. The World’s Best Kits.®MetraOnline.com © COPYRIGHT 2019 METRA ELECTRONICS CORPORATION REV.
11/4/22
INST99-3018
I N S TA L L AT I O N I N S T R U C T I O N S
99-3018
Attention! Let the vehicle sit with the key
out of the ignition for a few minutes before
removing the factory radio. When testing the
aftermarket equipment, ensure that all factory
equipment is connected before cycling the
key to ignition.
KIT FEATURES
ISO DIN radio provision with pocket
ISO DDIN radio provision
99-3018HG - gloss black, 99-3018S - silver
KIT COMPONENTS
• A) Radio trim panel • B) Radio brackets • C) Pocket • D) Upper dash trim panel (for navigation models) • E) (2) Plastic washers • F) (2) Metal clips
• G) (4) #8 x 3/8” Phillips truss-head screws • H) (8) #8 x 3/8” Phillips pan-head screws• I) (2) Copper threaded inserts
• J) Axxess interface and wiring harness (not shown) TOOLS REQUIRED
• Panel removal tool • 9/32” socket wrench
• T-10 Torx driver • Cutting tool • Phillips screwdriver
TABLE OF CONTENTS
Dash Disassembly .............................................. 2-4
Kit Preparation .......................................................5
Kit Assembly
–ISO DIN radio provision with pocket ..................6
–ISO DDIN radio provision .....................................6
Axxess Interface Installation .............................7-15
WIRING & ANTENNA CONNECTIONS
Wiring Harness: Axxess interface and
harness included
Antenna Adapter: 40-EU10 (sold sep.)
Steering wheel control interface: ASWC-1 (sold sep.)
Backup camera retention: BACKUPCAM-2 (sold sep.)
A B C
HG I
D E F
Cadillac*
CTS (Coupe) 2014 , CTS-V 2008-2014
CTS (Coupe/Sedan) 2008-2013
* Please note this kit will not work in the Sport Wagon
1.800.221.0932
|
MetraOnline.com
2

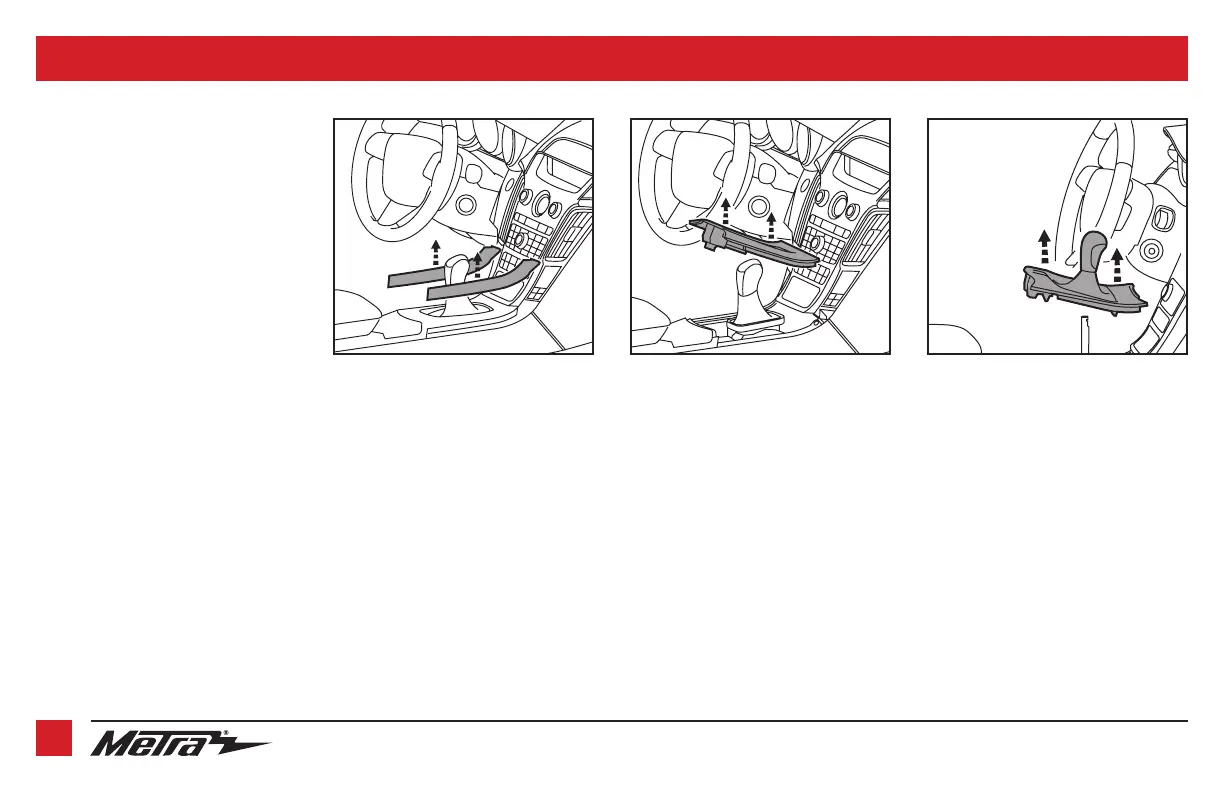

1. Remove the left and right shifter side
trim panels. (Figure A)
2a. Auto transmission vehicles:
Unclip the shifter trim. (Figure B)
Note: The boot and knob will remain
in place.
2b. Manual transmission vehicles: Unclip
the shifter trim and pull straight up on
the shift knob to remove the knob and
trim as one unit. (Figure C)
Note: This requires a lot of force, do not
twist the knob or the locking tab inside
the shift knob will break.
Continued on the next page
(Figure B)(Figure A) (Figure C)
DASH DISASSEMBLY
REV.
11/4/22
INST99-3018
3

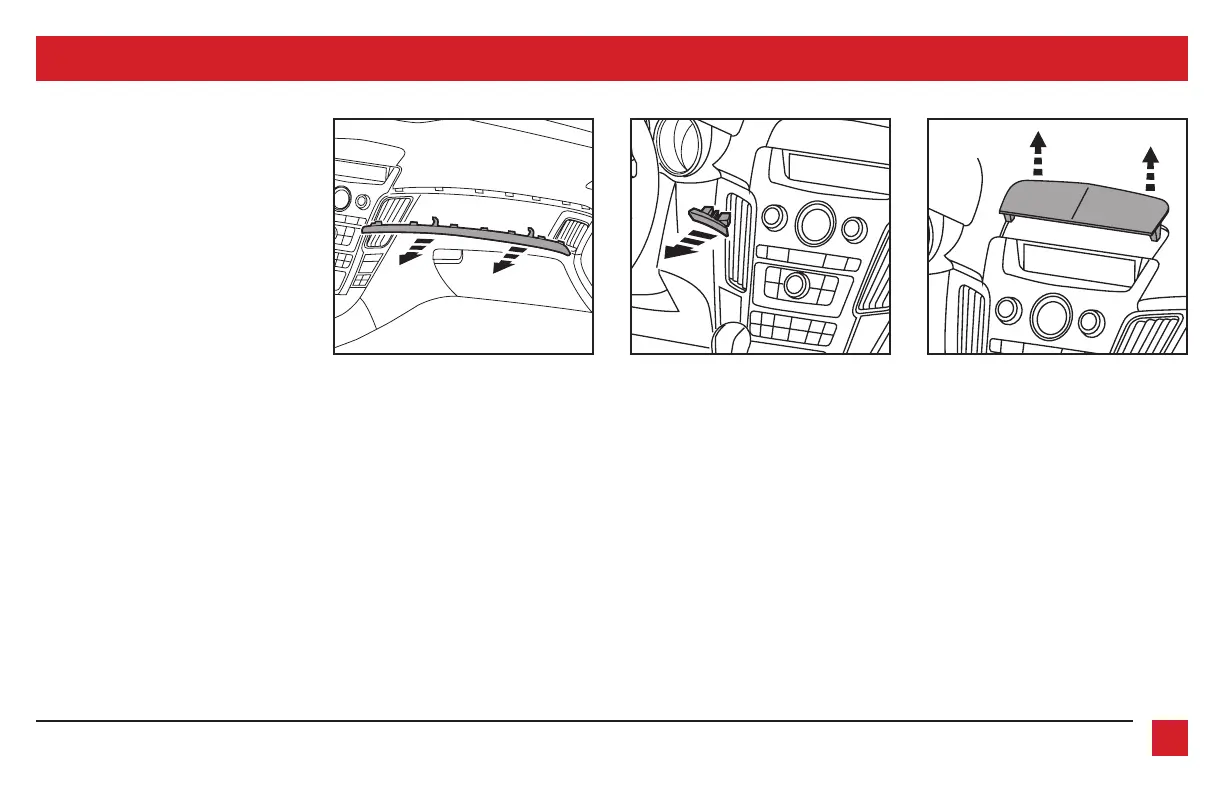

3. Remove the dash trim on both sides of
the radio panel. (Figures D, E)
4. Unclip the top dash radio trim
(non-navigation models only).
(Figure F)
Note: There will be a strap connected to
this panel that cannot be removed until
step 5 is performed. After step 5, remove
(1) 9/32” screw securing the strap and
then remove the panel.
Continued on the next page
DASH DISASSEMBLY (CONT.)
(Figure E)(Figure D) (Figure F)
