Technical Specifications
1
1×5 12G-SDI RECLOCKING DISTRIBUTION AMPLIFIER
SD1151-12G

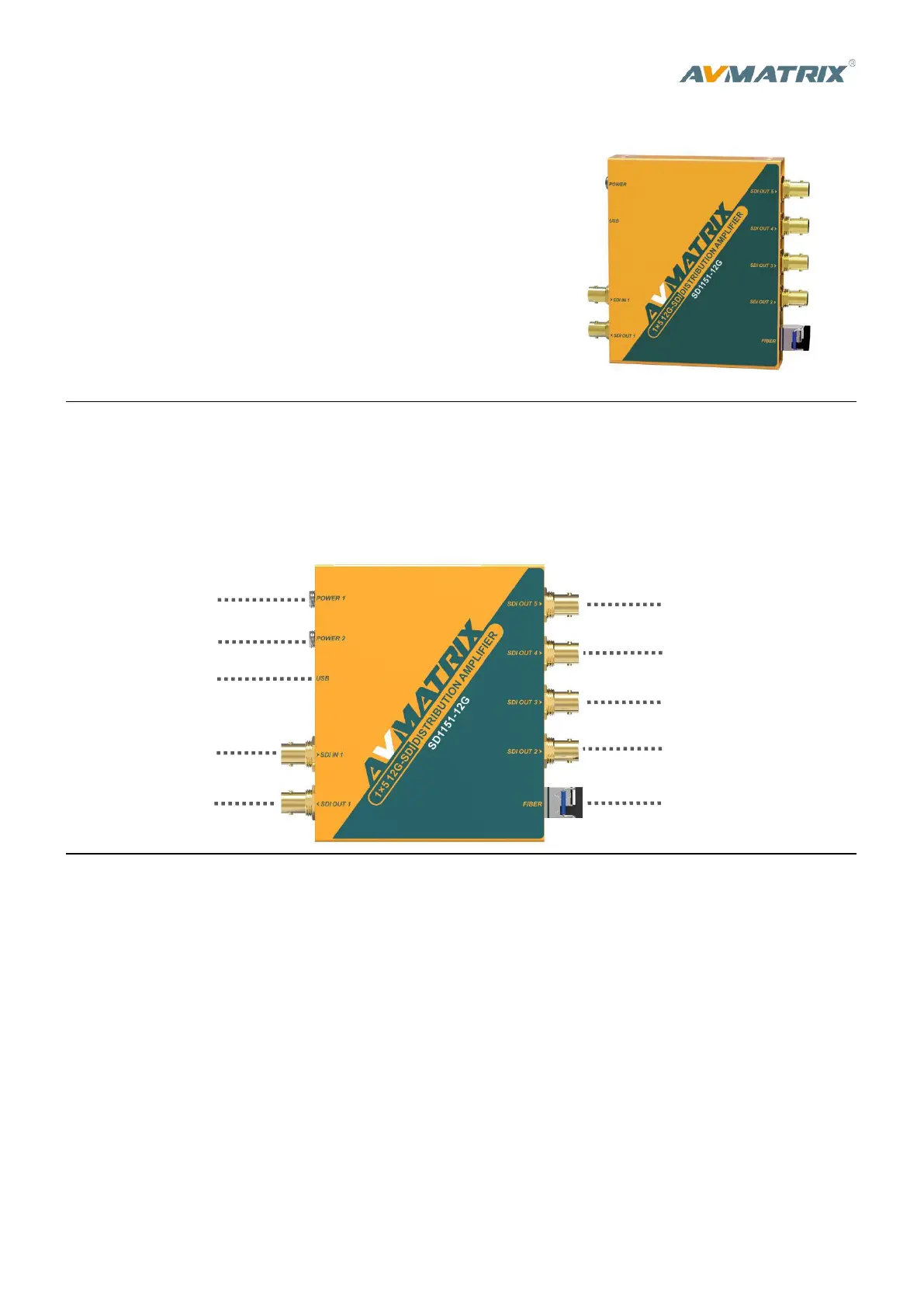

Connections
Standards
SDI Format Support
(SD) 625i 50/525i 59.94
(HD) 1280×720p 60/59.94/50 /30/29.97/25/24/23.98
(HD) 1920×1080p 30/29.97/25/24/23.98
(HD) 1920×1080PsF 30/29.97/25/24/23.98
(HD) 1920×1080i 60/59.94/50
(2K) 2048×1080p 30/29.97/25/24/23.98
(2K) 2048×1080PsF 30/29.97/25/24/23.98
(2K) 2048×1080 i 60/59.94/50
(3G) 1920×1080p 60/59.94/50
(6G) 1920×1080p/2048×1080p 47.95/48/50/59.94/60
(6G) 3840x2160p/4096×2160p 23.98/24/25/29.97/30
(12G) 3840x2160p/4096×2160p 23.98/24/25/29.97/30/47.95/48/50/59.94/60
SDI Compliance
SMPTE 259M, SMPTE 292M,
SMPTE 296M,
SMPTE 424M, SMPTE 425M,
SMPTE ST-2081, SMPTE ST-2082
SMPTE 274M
ITU-R BT.656, ITU-R BT.601
DVB-ASI
Optical Fiber Compliance
SMPTE 297M 2006
SDI Color Space and Precision
RGB 4:4:4 10bit/12bit
YUV 4:2:2 10bit/12bit
YUV 4:4:4 10bit/12bit
XYZ 4:4:4 12bit
The SD1151-12G is a miniature 1x5 12G-SDI re-clocking distribution
amplifier. The SD/HD/3G/6G/12G-SDI input signal is automatically
detected. It features cable equalization and re-clocking techniques that
enable the SDI cable distance up to SD: 400m, HD: 200m, 3G: 120m,
12G: 60m. It is also an ASI distributor amplifier that all input and
outputs are compatible with ASI signal.
SDI Video Input
1×SD/HD/3G/6G/12G-SDI (75Ω BNC)
Updates
USB
SDI Video Output
5×SD/HD/3G/6G/12G-SDI/ASI (75Ω BNC)
POWER 1
POWER 2
USB
SDI OUT 1
SDI IN 1
SDI OUT 5
SDI OUT 4
FIBER
SDI OUT 3
SDI OUT 2
FIBER Output
SFP Module for option, single
mode, 1310nm, LC Connector
Power Input
Dual DC Power, USB Power
Technical Specifications
2
Power
Physical Specifications
Dimension
125.5 104 24.5mm× ×
Gross Weight
1300g
Net Weight
600g
Environmental Specifications
Operating Temperature
-20℃~60℃
Storage Temperature
-30℃~70℃
Relative Humidity
0%~90% non-condensing

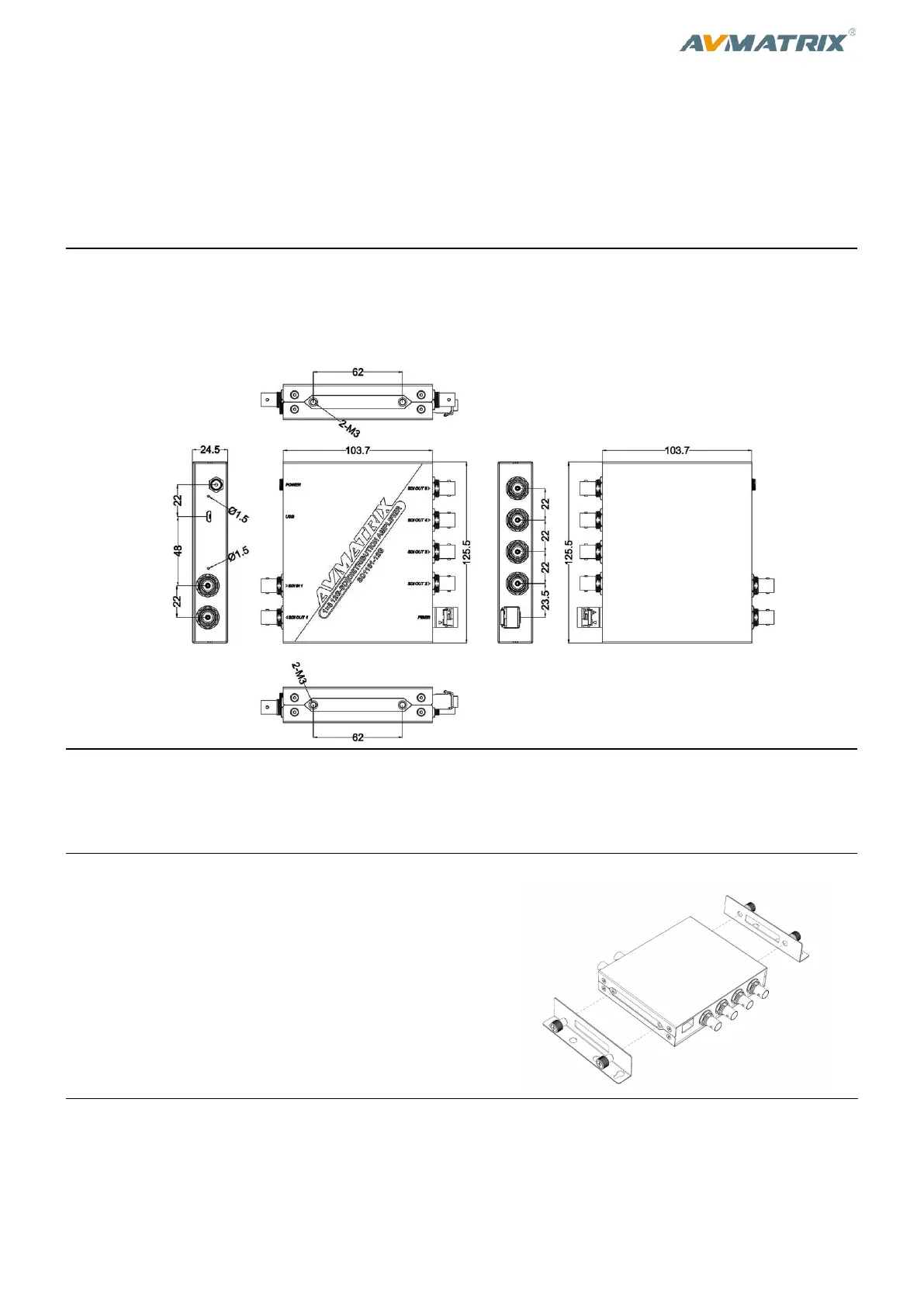

What's Included Mounting Diagram
SD1151 (1×5 12G-SDI Reclocking Distribution Amplifier)
DC 12V Universal Power Supply with International Socket Adapters
Mounting Brackets ×2
Warranty
3 Year Limited Manufacturer's Warranty.
Note: due to constant effort to improve products and product features, specifications may change without notice.
Power Supply
Threaded locking DC connector
Micro USB
Voltage Range
DC 6-23V
USB 5-5.5V
Power Consumption
3W (Max)
