ECK DRC

DRC CABLE EXTENSION KIT

It is a kit composed of a cable and an adapter allowing a 2 m

/ 78.74 in. additional extension of the cable supplied with the

DRC. This extension is required for installations on especially

long vehicles such as SUV’s. Total length of the supplied

cable with the extension is equal to 6,5 m / 225.90 in.

PACKAGE: Polybag - Qty. 1

ES3

BIT ENERGY STORAGE START & STOP

It prevents the processor from shutting down when turning on

vehicles featuring the start & stop system

When starting the engine, the vehicle battery voltage might decrease

below 8 Volts value. If a signal processor (bit One, bit Ten) is installed

in your system, especially with vehicles featuring the start & stop

system, low supply voltage values might make the processor shut

down. In order to avoid waiting for the processor to complete its

turn-on cycle again, you can install the ES3 by connecting it in series

to the processor power supply cables.

ACCESSORIES

ES3

Battery

12V

Ground

Fuse Holder

Not provided

suggested fuse

T1A-Delayed Imax -2A

For bit One HD, bit One, bit Nove, bit Ten D, bit Ten

Elettromedia

62018 Potenza Picena (MC) Italy

T +39 0733 870 870 - F +39 0733 870 880

elettromedia.com

All specications subject to change without notice_18.A

audison.com

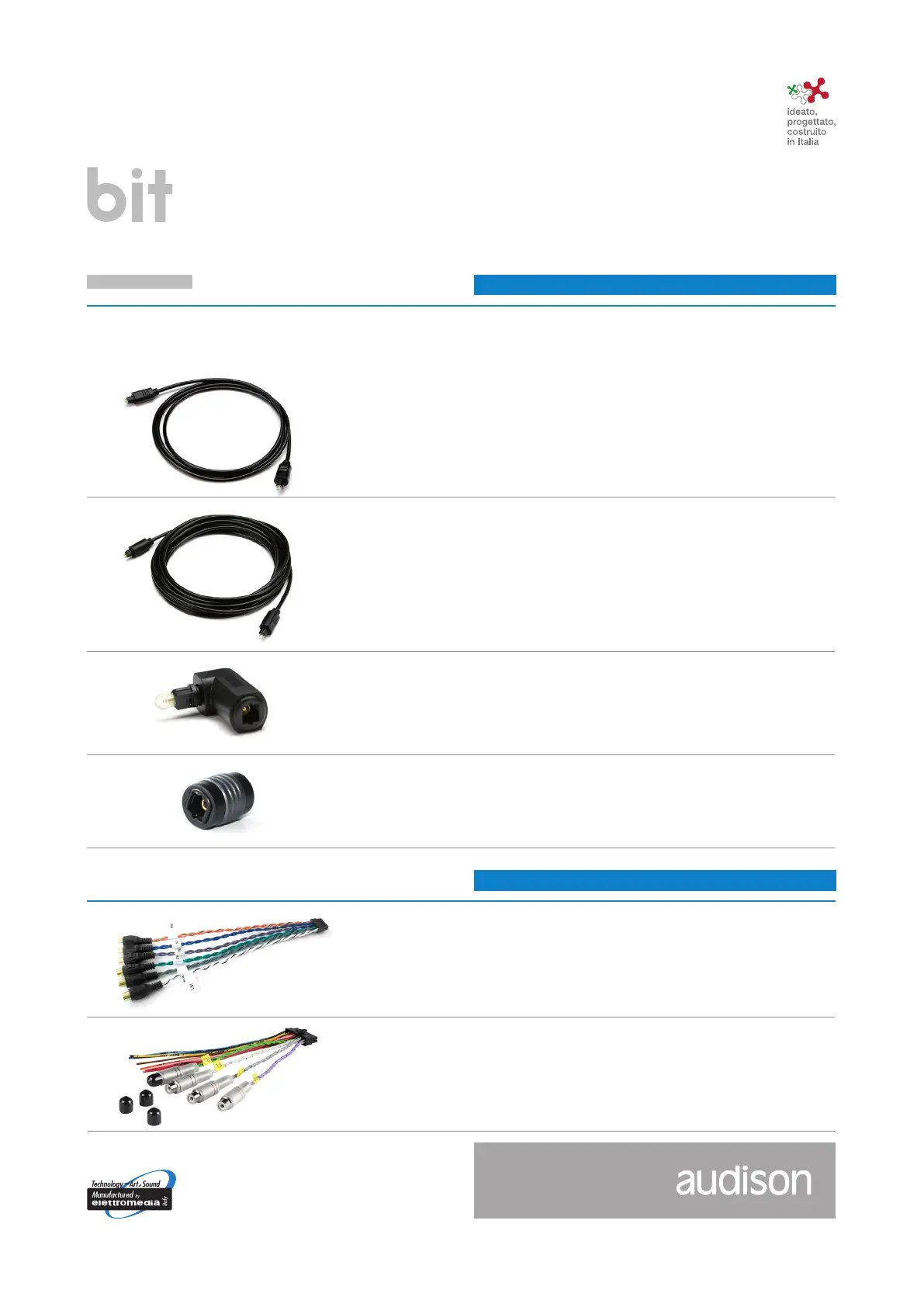

OP 1.5

TOSLINK OPTICAL CABLE 1,5 M / 59.05 IN.

Optical cable ending with Toslink connectors for S/PDIF digital audio

signals. Cable length 1,5 m/59,05”

PACKAGE: Polybag Qty. 1

OP 4.5

TOSLINK OPTICAL CABLE 4,5 M / 177.16 IN.

Optical cable ending with Toslink connectors for S/PDIF digital audio

signals. Cable length 4,5 m/177,16”

PACKAGE: Polybag Qty. 1

CBT 1

RCA BIT TEN ADAPTER CABLE

RCA connector for effortless and fast connections between the head unit

PRE OUTs (2 V min.) and bit Ten, bit Ten D Hi-Level inputs.

PACKAGE: Carton Box - Qty. 1

STA

F/F SOCKET TOSLINK ADAPTER

Optical adapter to extend optical cables featuring TOSLINK connectors.

PACKAGE: Polybag - Qty. 1

PIC 6

PRE IN CONNECTOR 6

RCA connector for effortless and fast connections between the head

unit PRE OUTs (1,2 min.) and the bit Nove PRE inputs.

PACKAGE: Carton Box - Qty. 1

For bit Ten, bit Ten D, bit Nove

Optical digital audio signal cable, designed for car audio applications, allowing the transfer of the optical signal along its 10 m / 393.70 in. length

without signal loss. An especially thicker sheath protects the optical bre to prevent the cable from damages if it is pressed against sharp edges.

The metal connector protects the optical bre along its full length, ensuring a stable transmission of the signal also in the event of strong vibrations.
