Installation Guide

AT-OME-EX-RX

Omega™ 4K/UHD

HDMI Over HDBaseT Receiver with USB, Control, and PoE

AT-OME-EX-RX

The Atlona AT-OME-EX-RX is an HDBaseT receiver for video up to 4K/60 4:2:0, plus embedded

audio, control, Ethernet, and USB over distances up to 330 feet (100 meters). Part of the

Omega™ Series of integration products for modern AV communications and collaboration,

the OME-EX-RX is HDCP 2.2 compliant and receives IR, RS-232, and IP control signals. With

a matching HDBaseT transmitter, the integrated USB extension is ideal for software video

conferencing and the use of touch or interactive displays. The OME-EX-RX includes two USB

interfaces for devices such as a camera or display. This receiver is ideal for use with Omega

Series transmitters as well as switchers with HDBaseT outputs. Also available is the OME-EX-

KIT which includes the OME-EX-TX and OME-EX-RX.*

* The AT-OME-EX-RX is not compatible with the AT-UHD-HDVS-300 system for extending USB.

IMPORTANT: Visit http://www.atlona.com/product/AT-OME-EX-RX for the

latest rmware updates and User Manual.

1 x AT-OME-EX-RX

1 x Captive screw connectors, 4-pin

2 x Mounting plates

4 x Mounting screws

1 x 48 V DC power supply

1 x Installation Guide

Package Contents

Installation Guide

AT-OME-EX-RX

1 LAN

Connect a category cable from this port to the display (sink) device. This cable provides IP

pass-through transport control to the display (sink) device, from a control system connected

to the transmitter.

2 DEVICE

Connect up to two USB 2.0 devices (e.g. mouse, keyboard, etc.) to these ports.

These ports provide 2.5 W per USB device.

3 FW

Connect a mini USB-to-USB cable from this port, to a computer, to update the rmware.

Refer to for more information.

Updating the Firmware (page 10)

4 PWR / LINK

The LED indicator will glow green when the AT-OME-EX-RX is powered. The PWR LINK

LED indicator glows yellow when a solid link is established between the transmitter and the

AT-OME-EX-RX. Refer to for more information.

LED Indicators (page 5)

5 DC 48V

Connect the included 48 V DC power supply to this power receptacle.

6 RS-232 / IR

Connect the included 4-pin captive screw block to this receptacle. Refer to RS-232 and IR

(page 3) for more information.

7 HDBaseT IN

Connect a category cable from this port to the port of the AT-OME-EX-TX or HDBaseT OUT

other PoE-compatible transmitter.

8 HDMI OUT

Connect an HDMI cable from this port to the display (sink) device.

LAN FW

OMEGAT M

DEVICE

PWR

LINK

HDMI OUTHDBaseT IN

RX TXTX

RS-232 IR

AT-OME-EX-RX

DC 48V

Front

Rear

65 7

1 3 4

Installation Guide

AT-OME-EX-RX

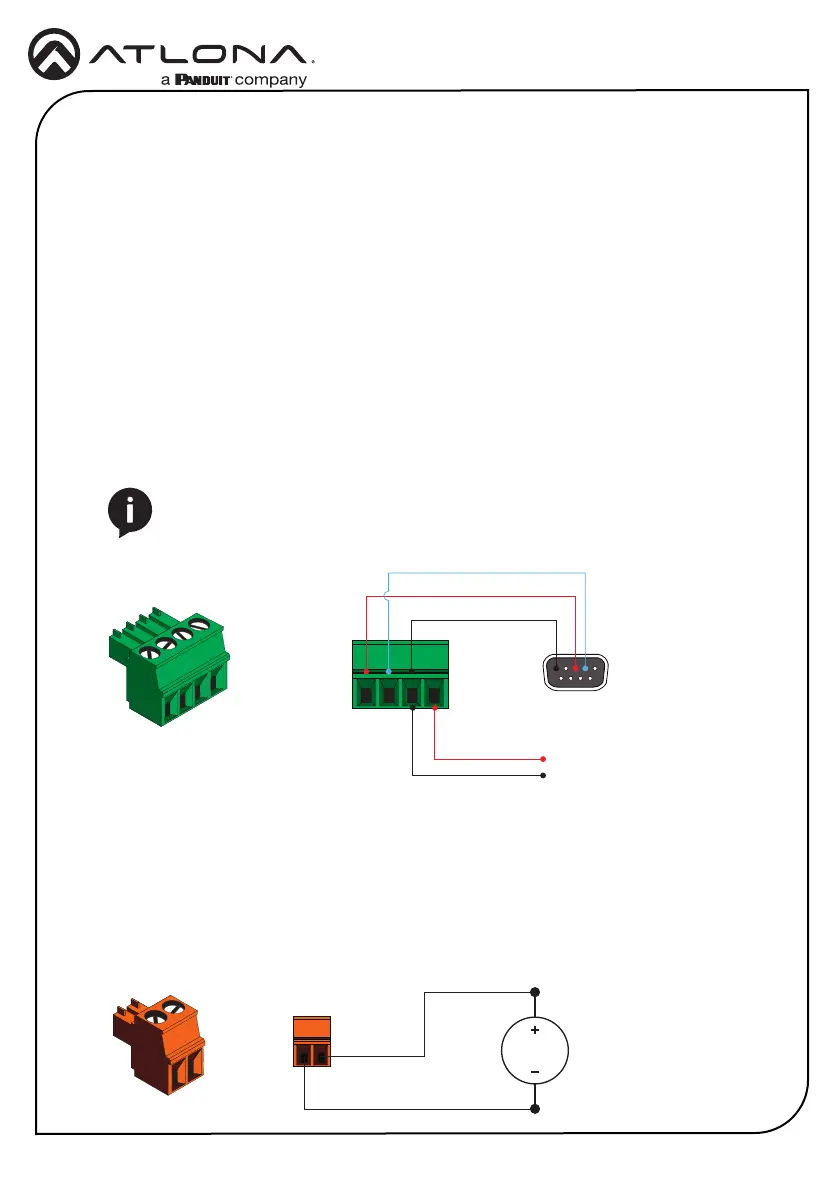

The AT-OME-EX-RX provides pass-through transport of RS-232 protocol and/or IR over

HDBaseT, which allows communication between a control system and an RS-232 or IR device.

This step is optional.

1. Use wire strippers to remove a portion of the cable jacket.

2. Remove at least 3/16” (5 mm) from the insulation of the RX, TX, and GND wires for the

RS-232 connection.

3. Insert the TX, RX, and GND wires into correct terminal using one of the included 4-pin

captive screw connectors.

4. Repeat step 2 for the S and GND wires for the IR connection.

5. Insert the S (signal) wire in to the TX terminal and the ground wire to the GND terminal.

6. Tighten the captive screws to secure the wires in place. Do not over-tighten or use

high-torque devices to prevent damage to the connector block.

NOTE: Typical DB9 connectors use pin 2 for TX, pin 3 for RX, and pin 5 for

ground. On some devices functions of pins 2 and 3 are reversed. Note that the

signal (S) pin for the IR is labeled as “TX” on the port.

GND

to control system

or AT-VCC-IR-KIT

DE-9 (RS-232) port

GND

RS-232 and IR

Power

1. Locate the included orange captive-screw block, and loosen the screws to allow room to

insert the copper wiring.

2. Wire the included power supply to the block, as shown below. Do not use high-torque

devices, when securing the wires to the captive-screw terminal block, as this may damage

the screws and/or block.

Black

White

48 V DC

power supply
