Aqara Ceiling Light T1M Manual
Read below 📖 the manual in Italian for Aqara Ceiling Light T1M (8 pages) in the Relief category. This guide has been helpful for 5 people and has been rated 4.5 stars on average by 2 users
Page 1/8
CAUTION:
If it does not light up after turning on the power, please confirm whether the
installation and wiring of the lamp are correct. The light source in this luminaire
should be replaced by the manufacturer or its service agent or a similarly qualified
person.
Unstable ceiling Warning: Risk of electrical shock!
Installation Manual
Warning: Before installing the lamp, the power must be cut off to prevent electric shock.
Installation method A
1. Turn off the power at the circuit breaker and the light switch. Install the mounting
brackert on the junction box using the junction box screws. Ensure that the two
mounting bracket screws are pointing away from the ceiling.
2. Place the base on the mounting bracket. Temporarily screw the base of the
luminaire to the mounting bracket using the butterfly screws.

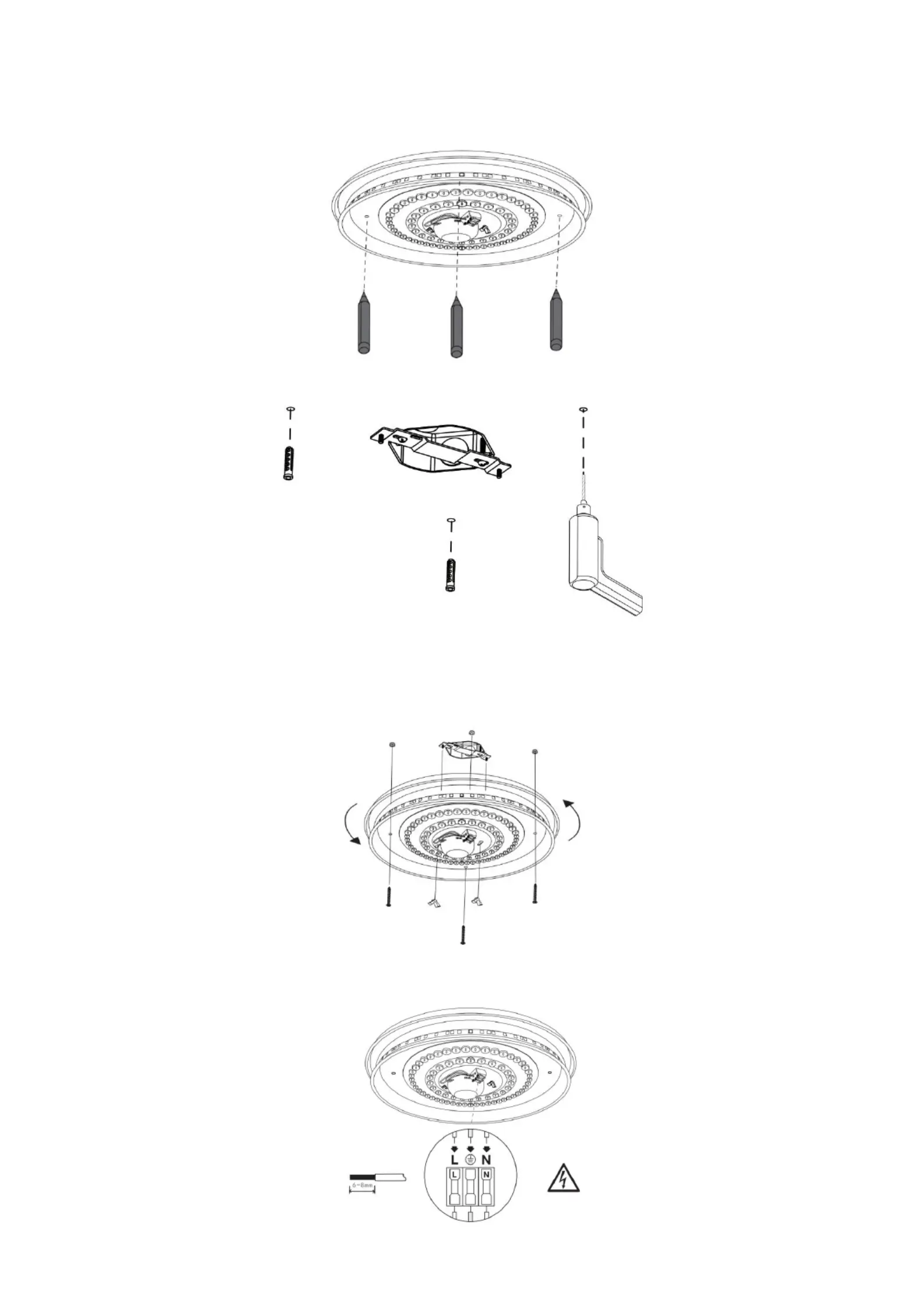

3. Mark on the ceiling the 3 locations where the holes will be drilled and remove the
base.
4. Drill pilot holes in the ceiling with a drill bit. And push wall anchors into the holes.
5. Slowly place the wires in the connection box. Align the holes in the base of the
luminaire with the mounting bracket screws, raise the base and turn it
counterclockwisee, locking it into place. Tighten the buttrerfly screws to fix the light
fixture to the ceiling and fasten the 3 retaining screws into the wall anchors.
6. Strip the wires by 6-8mm, and connect the live wire,ground wire, and neutral
wire to the wiring holes marked with L, , and N in the ceiling lamp in sequence.⏚
Stripping wire
Warning:
Risk of electrical chock!
This product must be grounded!
7. Hold both sides of the lampshade with both hands, align the base and gently buckle
it in, totate the lampshade clockwise to make it firmly installed with the base, and the
installation of the ceiling lamp is completed.
Installation method B
1. Cut off the power supply; unpack, take out the accessory package, hold the lampshade with
both hands as shown in the figure below, and open the lampshade counterclockwise to take out the
base.
2. Mark the installation holes on the ceiling according to the installation position of
the ceiling lamp with the base., and then drill the holes with an electric drill (the
drilling depth is ≥ 40mm).
3. After drilling the holes, drive the wall anchors into the holes, and lead the wires
out of the holes on the base.
Product Specifications
| Brand: | Aqara |
| Category: | Relief |
| Model: | Ceiling Light T1M |
