PCV Series LED Vanity Indoor Luminaires
Models: PCV241700L30SN, PCV362500L30SN, PCV483400L30 SN
Page 1 of 1 8060968 R4
Limited Factory Warranty
This product is manufactured by AFX Inc. This xture is warranted to be free from defects in materials and workmanship when installed and used under
normal operating conditions for a period of 5 years from date of purchase. This warranty covers all component parts and extends only to replacement of
defective xture or components; it does not cover failure due to improper installation, misuse, mishandling or damage incurred in transit.
Safety Precautions
Read all safety precautions and installation instructions carefully before installing or servicing this xture. Failure to comply with these instructions could result
in potentially fatal electric shock and/or property damage.
is recommended that a qualied electrician perform all wiring. This xture must be wired in accordance with all national and local electrical codes. It
Do not handle any energized xture or attempt to energize any xture with wet hands or while standing on a wet or damp surface or in water.
This xture is designed for use in a 120V AC, 60Hz fused circuit.
Make sure that the power source conforms to the requirements of the xture. (See labels on xture housing)
To reduce the risk of electrical shock, and to assure proper operation, this xture must be adequately grounded. To accomplish proper grounding, there must
be a separate ground wire (green) contact between this xture and the ground connection of your main power supply panel.
This xture is intended to be used for general indoor lighting in dry or damp locations.
Disclaimer:
Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. NOTE:
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules and Canadian ICES-
005 (B) / NMB-005 (B). These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment
generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to
radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
• Reorient or relocate the receiver antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult with the dealer or an experienced radio/TV technician for help.
Any modications to this xture may void the warranty and interfere with the safe operation of the luminaire.
Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including
interference that may cause undesired operation of the device.
ASSEMBLY INSTRUCTIONS
Step 1 - Preparing for installation
A. Disconnect electrical power at fuse or circuit breaker
box before installing or servicing any part of this xture.
B. Carefully remove the xture from the carton.

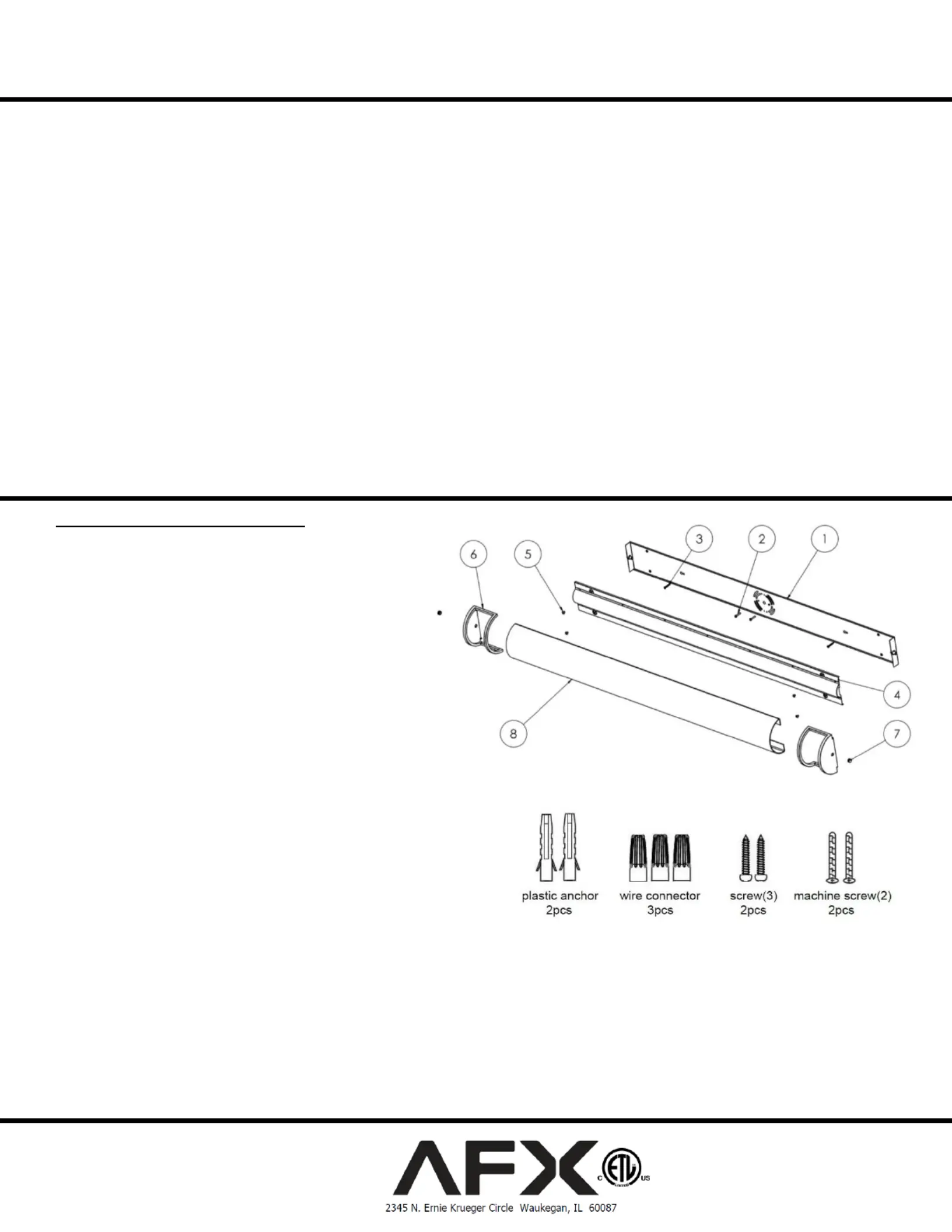

Step 2 - Remove back pan from the xture by removing two (1)
thumbnuts ) and four screws (5) to release from channel (7
(4).
Wiring-all wiring must take place inside junction box (not
included).
Caution: Make sure power is o at fuse or circuit breaker
box. Check power wires for damage or scrapes. If power
supply wires are within three inches of the LED board, use
wire suitable for at least °C (194°F). 90
Note: Most dwellings built before 1985 have supply wire
rated to 60°C. Consult a qualied electrician before
installing.
Step 3 - Install back pan (1) to junction box (not provided) using two machine
screws (2) and plastic anchor & wood screws (3) to wall.
Step 4 - Make all wire connections to appropriate wire. Secure with wire nuts
(supplied).
A. Connect the green wire from the xture to the power source green wire.
B The black wire from the xture is connected to the black wire from . (L)
power source.
C The white wire from the xture is connected to the white (N) wire from .
power source.
D Tuck all connections neatly into the junction box. .
Step 5 - Install channel (4) to back pan (1) with four small screws (5).
Step 6 - Install one of metal end cap (6) with thumbnut (7) to the back pan (1) then slide diuser in toward previously installed end cap until bottom (8)
out. Secure the diuser with other metal end cap and thumbnut to complete installation.
Step 7 - Restore power at fuse or circuit breaker box.
