When Installing the Unit

• Refer all installation work to the dealer from

whom the speaker was purchased. Installation

work requires extensive technical knowledge and

experience. The speaker may fall off if incorrectly

installed, resulting in possible personal injury.

• Install the speaker only in a location that can

structurally support the full weight of the unit and

mounting bracket. Doing otherwise may result in

the speaker falling down and causing personal

injury and/or property damage.

• Since the unit is designed for in-door use, do not

install it outdoors. If installed outdoors, the aging of

parts causes the unit to fall off, resulting in personal

injury. Also, when it gets wet with rain, there is a

danger of electric shock.

• Donotuseothermethodsthanspeciedtoinstall

the speaker. Extreme force is applied to the speaker

and the speaker could fall off, possibly resulting in

personal injuries.

• Use screws that are appropriate for the ceiling's

material and structure. Failure to do so may cause

the speaker to fall, resulting in material damage and

possible personal injury.

• Ensure that all screws are securely tightened. If

they are loose after installation, the speaker could

fall down, possibly resulting in personal injury.

ThankyouforpurchasingTOA’sCeilingMountSpeaker.

Please carefully follow the instructions in this manual to ensure long, trouble-free use of your equipment.

CEILING MOUNT SPEAKER

INSTRUCTION MANUAL

PC-1860EN

PC-2360EN

TABLE OF CONTENTS

1. SAFETY PRECAUTIONS

• Before installation or use, be sure to carefully read all the instructions in this section for correct and safe

operation.

• Be sure to follow all the precautionary instructions in this section, which contain important warnings and/or

cautions regarding safety.

• After reading, keep this manual handy for future reference.

Indicates a potentially hazardous situation which,

if mishandled, could result in death or serious

personal injury.

WARNING

Traceability Information for Europe

Manufacturer:

TOACorporation

7-2-1,Minatojima-Nakamachi,Chuo-ku,Kobe,Hyogo,

Japan

Authorizedrepresentative:

TOAElectronicsEuropeGmbH

Suederstrasse282,20537Hamburg,

Germany

1. SAFETY PRECAUTIONS 1 .............................

2. GENERAL DESCRIPTION AND FEATURES ... 2

3. INSTALLATION 3 ............................................

4. WIRING DIAGRAMS 4 ....................................

5. FREQUENCY RESPONSE (1 W, 4 M) 4 .........

6. SPECIFICATIONS 5 ........................................

When Installing the Unit

• Do not mount the speaker in locations exposed to

constant vibration. The speaker or its mounts can

be damaged by excessive vibration, potentially

causing the speaker to fall, which could result in

personal injury.

• Do not use anti-rust lubricant. If it contacts resin or

rubber parts, they could deteriorate and cause the

speaker to fall, possibly resulting in personal injury.

• Do not install the speaker in indoor swimming

pools or such locations where liquid chemicals are

used. The parts deteriorate if corroded, causing the

speaker to fall, which could result in personal injury.

When the Unit is in Use

• If any of the following irregularities occurs,

immediately switch off the amplier's power, and

inform the shop from where the speaker was

purchased. Further using the speaker may result in

reorelectricshock.

· If you detect smoke or a strange smell coming

from the speaker

· If water or any metallic object gets into the speaker

· If the speaker falls, or the speaker case breaks

• Topreventareorelectricshock,neveropennor

remove the speaker case. Refer all servicing to

your nearest TOA dealer.

When Installing the Unit

• Avoid touching the speaker's sharp metal edge to

prevent injury.

• To avoid electric shocks, be sure to switch off the

amplier'spowerwhenconnectingspeakers.

When the Unit is in Use

• Do not operate the speaker for an extended period

of time with the sound distorting. Doing so may

causethespeakertoheat,resultinginare.

• Do not stand or sit on, nor hang down from the

speaker as this may cause it to fall down or drop,

resulting in personal injury and/or property damage.

• Havethespeakercheckedperiodicallybytheshop

from where it was purchased. Failure to do so may

result in corrosion or damage to the speaker or the

mounts that could cause it to fall, possibly causing

personal injury.

2. GENERAL DESCRIPTION AND FEATURES

ThePC-1860ENandPC-2360ENarecertiedaccordingtotheEuropeanStandardEN54-24:2008.

Integratedwitha speaker unitandpanel,the PC-1860EN and PC-2360EN Ceiling MountSpeakers are of

metallic construction and ideal for use in a voice alarm system. They feature spring catch mechanism for easy

speaker mounting to the ceiling. The input impedance can be easily changed by changing the tap position of

the transformer. The push-in type input terminal block makes cable connections easy and allows bridge wiring.

Indicates a potentially hazardous situation which,

if mishandled, could result in moderate or minor

personal injury, and/or property damage.

CAUTION

Indicates a potentially hazardous situation which,

if mishandled, could result in death or serious

personal injury.

WARNING

3-2. Changetheinputimpedanceasneeded.

The speaker's input is factory-preset to 1.7

kΩ. When changing the input impedance,

detach the black wire connected to the

matching transformer, and reinsert it into

the desired input tap referring to the tables

below.

3.3kΩ

1.7kΩ

COM

6.7kΩ

13kΩ

HOT (Black) COM (White)

Matching transformer

Impedance 1.7kΩ 3.3kΩ 6.7kΩ 13kΩ

100 V line 6W 3W 1.5W 0.8W

70 V line 3W 0.8W 0.4W1.5W

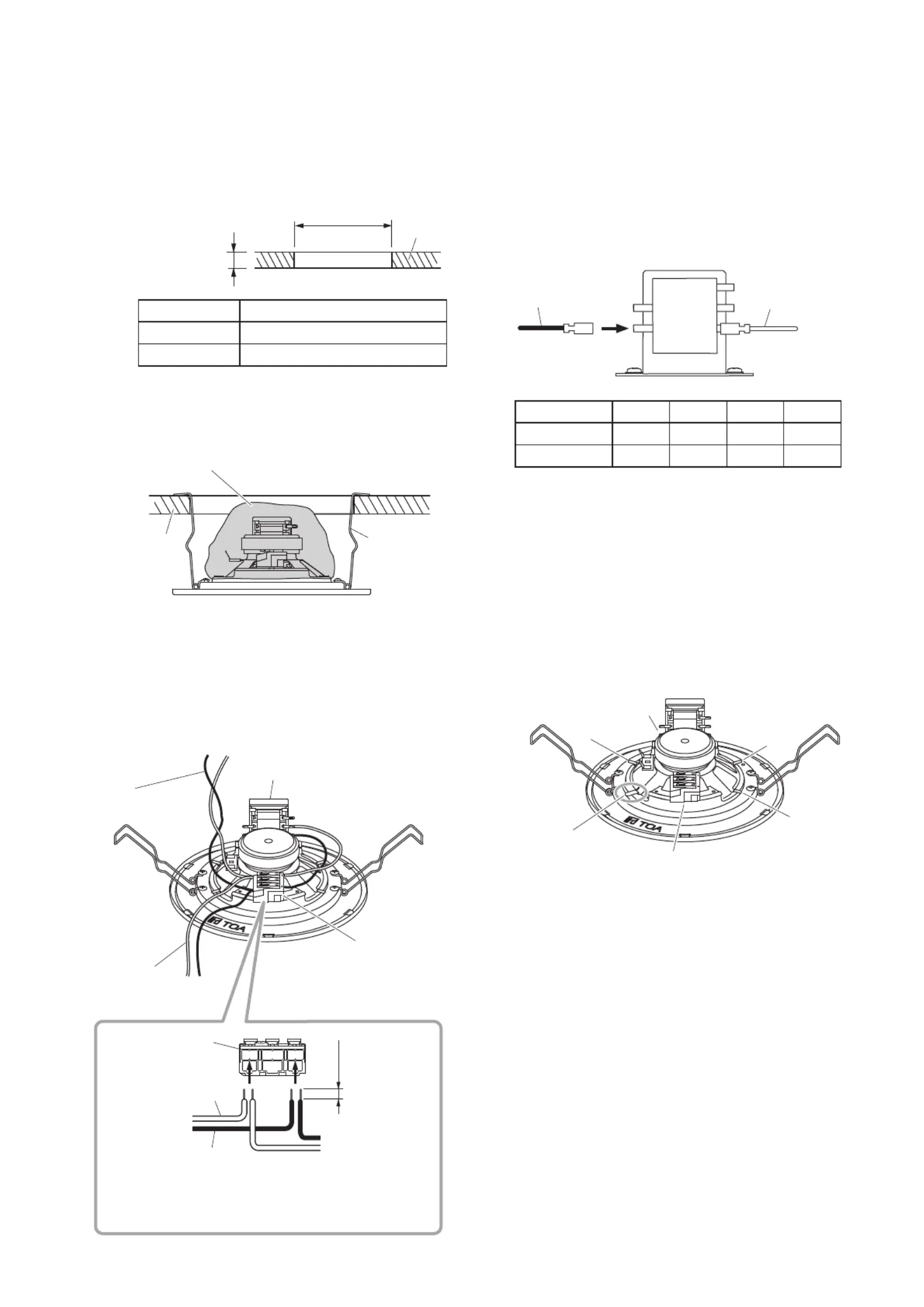

3. INSTALLATION

Step 1. Using the supplied paper pattern as a guide,

open a mounting hole of the dimension

speciedbelowintheceiling.

Ceiling

5 – 25 mm

(0.2" – 0.98")

øA

ModelNo. øA

PC-1860EN ø150 ±3 mm (ø5.91" ±0.12")

PC-2360EN ø200 ±3 mm (ø7.87" ±0.12")

Step 2. Hook the speaker mounting spring into the

mounting hole in the ceiling.

Ceiling Speaker

mounting

spring

Splash proof cover

Step 3. Makewiring.

3-1. Insert the lead-in cables (cables from the

amplier) and lead-out cables (cables to

other speakers) into the input connector.

[Whenmakingabridgeconnection]

Input connector

Matching transformer

Speaker cable

(From the amplifier)

Speaker cable

(To the next speaker)

Input connector

From

the amplifier To

the next speaker

COM (–)

HOT (+)

9 mm

(0.35")

Applicable cable

Solid wire: ø0.8 – ø1.6 mm

(equivalent to AWG 20 – 14)

View with splash proof cover

removed

Step 4. Mountthesplashproofcover.

Important

Hookthesplashproofcoverateverypoints

markedwitharrowsinthegurebelow.The

splash proof cover is compliant with the dust/

waterprotectionratingIP21C.

Check thatthe coveris securely xedtoall

hooking positions to protect the speaker unit,

transformer, and connection terminal from

water splash.

(1)

(2)

(3) Input connector

Cover hook

(1)Hookthesplashproofcovertothecover

hook.

(2)Hook the splash proof cover under the

Matchingtransformer.

(3)Hook the splash proof cover under the

Input connector.

AlltheguresinthissectionshowPC-1860EN.
