Sitecom CN-5503 Manual
Read below 📖 the manual in Italian for Sitecom CN-5503 (16 pages) in the USB Hub category. This guide has been helpful for 2 people and has been rated 4.5 stars on average by 2 users
Page 1/16

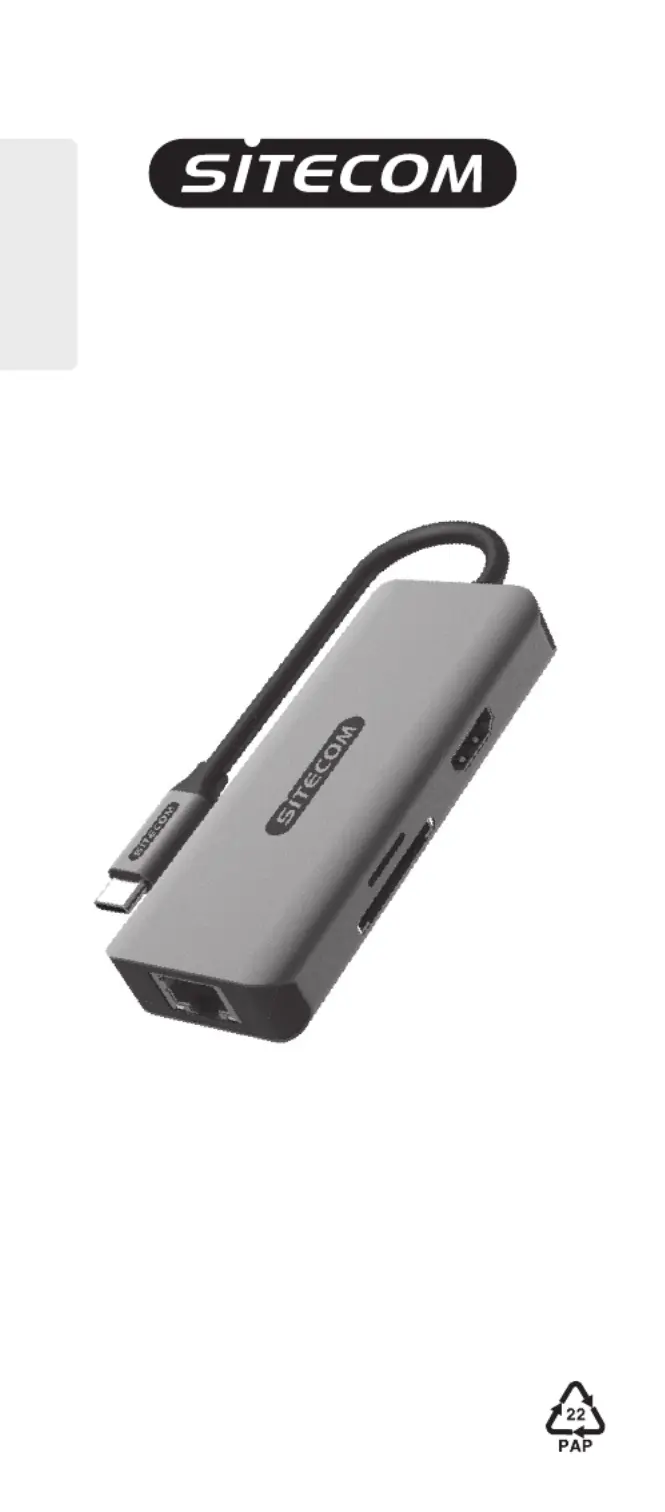

HOME / OFFICE
6 in 1
USB-C LAN
Multiport Adapter
Type: CN-5503
User manual
EN: User manual CN-5503 6 in 1 USB-C LAN Multiport Adapter 3 . . . . .
NL: Handleiding CN-5503 6 in 1 USB-C LAN Multiport Adapter 4 . . . . .
DE: Benutzerhandbuch CN-5503 6-in-1-USB-C-LAN-Multiport-
Adapter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
FR: Guide de l’utilisateur CN-5503 Adaptateur multiports
LAN USB-C 6 en 1 6 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
IT: Manuale dell’utente CN-5503 Adattatore multiporta
LAN USB-C 6 in 1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
ES: Manual de usuario CN-5503 Adaptador multipuerto
LAN USB-C 6 en 1 8 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
PT: Manual do utilizador CN-5503 Adaptador multiporta
LAN USB-C LAN 6 em 1 9 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
PL: Instrukcja obsługi CN-5503 Wieloportowa przejściówka
LAN USB-C LAN 6 w 1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
ΕΛ: Εγχειρίδιο χρήστη CN-5503 Προσαρμογέας πολλαπλών
θυρών USB-C LAN 6 σε 1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Legal & Compliance Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
2
4
5
6
3
1
3
EN
At a glance
Item Specications Description
1 USB-C
connector
Male USB-C connector Connects to USB-C port of computer.
Compatible with USB-C and
Thunderbolt 3 / 4. Plug and play.
2 USB-A ports USB 3.0 – max. speed 5Gbps.
Supports charging up to
7.5W (5V/1.5A)
Connect a USB device to transfer data,
power a device or charge a device.
3 Ethernet port Gigabit Ethernet at max.
1000Mbps
Connect your device to a wired
network
4 Micro SD card
slot
SD 3.0 – max. speed
104MB/s. Supports cards
up to 2TB
Insert a MicroSD card to copy les to
and from the computer
5 SD card slot SD 3.0 – max. speed
104MB/s. Supports cards
up to 2TB
Insert a SD card to copy les to and
from the computer
6 HDMI port HDMI 1.4 – max. resolution
4K at 30Hz. Backwards
compatible.
Connect to any device with an
HDMI port
Other specications
Supported OS Windows 7/8/10/11, Mac
OS X 10.2 and above,
Chrome OS
A free USB-C port is required to
use this device. Not all USB-C ports
support all features, consult computer
manual for USB-C port compatibility
Dimensions 248 x 40 x 15 mm The dimensions are including cable
Weight 57 grams This product is lightweight for ease
of carrying
Package contents 1x CN-5503 & 1x User manual Keep this manual for future reference
Important safety instructions
• Do not drop. Frequent dropping may lead to malfunctioning.
• Do not disassemble. Repairs should only be done by qualied service centers.
• Do not expose to liquids or re.
• Do not extend cable. Extending cable may lead to poor performance.
• Do not exceed 40° Celsius ambient temperature. Product may not function properly
above 40° Celsius.
Support
Warranty 24 months warranty. Please note that your rights under national law remain
unaected by this warranty.
Support Lifetime technical support
Website www.sitecom.com
Contact support@sitecom.com
