Page 1/16
MODELS
RD060, RD120,
RD060-O, RD120-O
GB1, GB2, GB3, GB4
INSTALLATION AND OPERATION INSTRUCTIONS
ARCTICPOUR ADVANCED REFRIGERATION TECHNOLOGY
IMPORTANT INFORMATION
To register your product, visit our web site at www.
perlick.com Commercial Service. Click on , then .
You will see the link to Warranty Registration Form.
You must complete and submit this form or the
installation date will revert back to the ship date.
Permanently mount the enclosed Warning/Safety
Instruction label in a visible location near the CO2
regulator.
This manual has been prepared to assist you in the
installation of your Century Remote Beer System and
to acquaint you with its operation and maintenance.
We dedicate considerable time to ensure that our
products provide the highest level of customer
satisfaction. If service is required, your dealer can
provide you with a list of qualified service agents. For
your own protection, never return merchandise for
credit without our approval.
We thank you for selecting a Perlick product and assure
you of our continuing interest in your satisfaction .
8300 West Good Hope Road β’ Milwaukee, WI 53223 β’ Phone 414.353.7060 β’ Fax 414.353.7069
Toll Free 800.558.5592 β’ E-Mail perlick@perlick.com β’ www.perlick.com
Table of Contents
Dimensional Drawings 2 ...............................................
Product Description 5 ...................................................
Installation 5 .................................................................
Important Safety Warnings 5 ....................................
Installing the System 5 .............................................
All Models 6 .........................................................
Connecting to a Trunk Housing 6 .............................
Connecting Trunk Housing to Dispensing Head 6 ....
System Pak Start-Up 6 .................................................
Digital Temperature Controller ................................... 7
Preventative Maintenance 9 .........................................
Replacement Parts 9 ....................................................
Wiring Diagrams ...................................................... 11
Form No. Z2339
Rev. 11.30.2022
Refrigeration Deck
Glycol Bath
Perlick is committed to continuous improvement. Therefore, we reserve the right to change speciξcations without prior notice
2
ARCTICPOUR
Operation/Installation Manual
Air-Cooled Refrigeration Deck
Permanently Connected Cord Connected
MODEL NOS. RD060 RD060-O RD120 RD120-O RD060-C
DIMENSIONS:
EXTERIOR (mm)
Length 31-1/2β (800) 35-15/16β (913) 34-3/8β (873) 38-15/16β (989) 31-1/2β (775)
Width 17-3/8β (441) 28-1/4β (718) 21-3/4β (552) 33-3/8β (848) 17-3/8β (445)
Height 15-3/16β (386) 15-3/16β (387) 18-1/16β (459) 18-1/16β (459) 15-3/16β (386)
A minimum of 12β of clearance should be allowed around the entire unit for proper performance. Additional clearance should be considered for
above and in front of the unit for serviceability.
ELECTRICAL Voltage 120 V 120 V 208/230 V 208/230 V 120 V
Frequency 60 Hz 60 Hz 60 Hz 60 Hz 60 Hz
Phase 1 Γ 1 Γ 1 Γ 1 Γ 1 Γ
RLA 11.5 11.5 19.3 19.3 11.5
MCA 18.4 18.4 23.8 23.8
Max Fuse 30 30 40 40
Cord/Plug N/A N/A N/A N/A 14/3 NEMA 5-15P
COMPRESSOR 3/4 HP 3/4 HP 1.5 HP 1.5 HP 3/4 HP
EVAPORATOR RATING
@ 20Β°F (BTUH)
6000 6000 12000 12000 6000
HEAT REJECTION (MAX) 8100 8100 16800 16800 8100
REFRIGERANT R-134a R-134a R-134a R-134a R-134a
SHIPPING WEIGHT LBS (kg) 120 (54) 120 (54) 140 (64) 140 (64) 120 (54)
CABINET Stainless Steel
REFRIGERATION Constant Pressure Expansion Valve, Condensing Unit with Service Valves
REFRIGERANT CHARGE (grams) 14.0 oz/397 g 14.0 oz/397 g 16 oz/453 g 16 oz/453 g 14.0 oz/397 g
Glycol Bath
Permanently Connected Cord Connected
MODEL NOS. GB1 GB2 GB3 GB4 GB1-C GB2-C
DIMENSIONS:
EXTERIOR (mm)
Length βAβ 24-3/4β (629) 24-3/4β (629) 24-3/4β (629) 24-3/4β (629) 24-3/4β (629) 24-3/4β (629)
Width βBβ 19β (483) 23-11/16β (602) 23-11/16β (602) 23-11/16β (602) 19β (483) 23-11/16β (602)
Height βCβ 25-5/16β (643) 25-5/16β (643) 25-5/16β (643) 25-5/16β (643) 25-5/16β (643) 25-5/16β (643)
A minimum of 6β of clearance should be allowed around the entire unit for proper performance. Additional clearance should be considered for
above the unit and in front of the unit for servicability.
ELECTRICAL Voltage 120 V 120 V 120 V 120 V 120 V 120 V
Frequency 60 Hz 60 Hz 60 Hz 60 Hz 60 Hz 60 Hz
Phase 1 Γ 1 Γ 1 Γ 1 Γ 1 Γ 1 Γ
RLA 6.5 12.6 18.7 24.8 N/A N/A
MCA 7.6 13.6 19.6 25.6 N/A N/A
Max Fuse 15 20 25 30 N/A N/A
Current/Plug N/A N/A N/A N/A 6.5, NEMA 5-15 12.6, NEMA 5-20P
SHIPPING WEIGHT LBS (kg) 140 (64) 140 (64) 140 (64) 140 (64) 140 (64) 140 (64)
CIRCULATING PUMP #1 140 GPH / 130 PSIG
CIRCULATING PUMP #2, #3, #4 100 GPH / 130 PSIG
RESERVOIR CAPACITY 12 gal
GLYCOL CONCENTRATION 30% 30% 30% 30% 30% 30%
67451 Coolant Connector Parts Bag, Refrigeration Deck to Glycol Bath Rack, 37β X 19-3/4β, 3-Tiered61790+1
67451-1 Coolant Connector, Fabricated, Per Foot, Refrigeration Deck to Glycol Bath Rack, 37β X 19-3/4β, 4-Tiered61790+2
63299-1 57782Glycol Solution, 1 gallon Legs, Set of 4, 6β Nom
63335 Coolant Connector Kit (Glycol Bath to Trunk Housing) Wall Shelf, Large (RD120)68470-1
63335-1 Coolant Connector Kit (Glycol Bath to Trunk Housing) Wall Shelf, Small (RD060 or GB)68470-2
68455 68508Flashchill Connector Kit Rack, ArcticPOUR, Two Tier
C21499BSS Stand, 35β X 22β Rack, ArcticPOUR, +1 Extension68508+1
61790 Rack, 37β X 19-3/4β, 2-Tiered Rack, ArcticPOUR, +2 Extension68508+2
ACCESSORIES
Perlick is committed to continuous improvement. Therefore, we reserve the right to change speciξcations without prior notice
3
ARCTICPOUR
Operation/Installation Manual
Form No. Z2339
Rev. 11.30.2022
20 5
16 "
20 3
4"
13 3
16 "
15 11
16 "
MOUNTING
HOLES
24 3
4"
22 15
16 "
CONNECTIONS
(7/8" KNOCKOUT))
PUMP INLET
1/2" BARB
CONNECTIONS
3/8" BARB PRODUCT
POWER CORD
(ELECTRICAL
PUMP OUTLET
1/2" BARB
25 5
8"
PRODUCT
TUBES
24 5
16 "
I/O TUBES
14"
13 1
4"
MOUNTING
HOLES
12 5
16 "
RETURN(S)
1/2" GLYCOL
1/2" GLYCOL
OUTLET(S) TO
PUMP(S).
23 11
16 "
1
4"
MOUNTING HOLES (4)

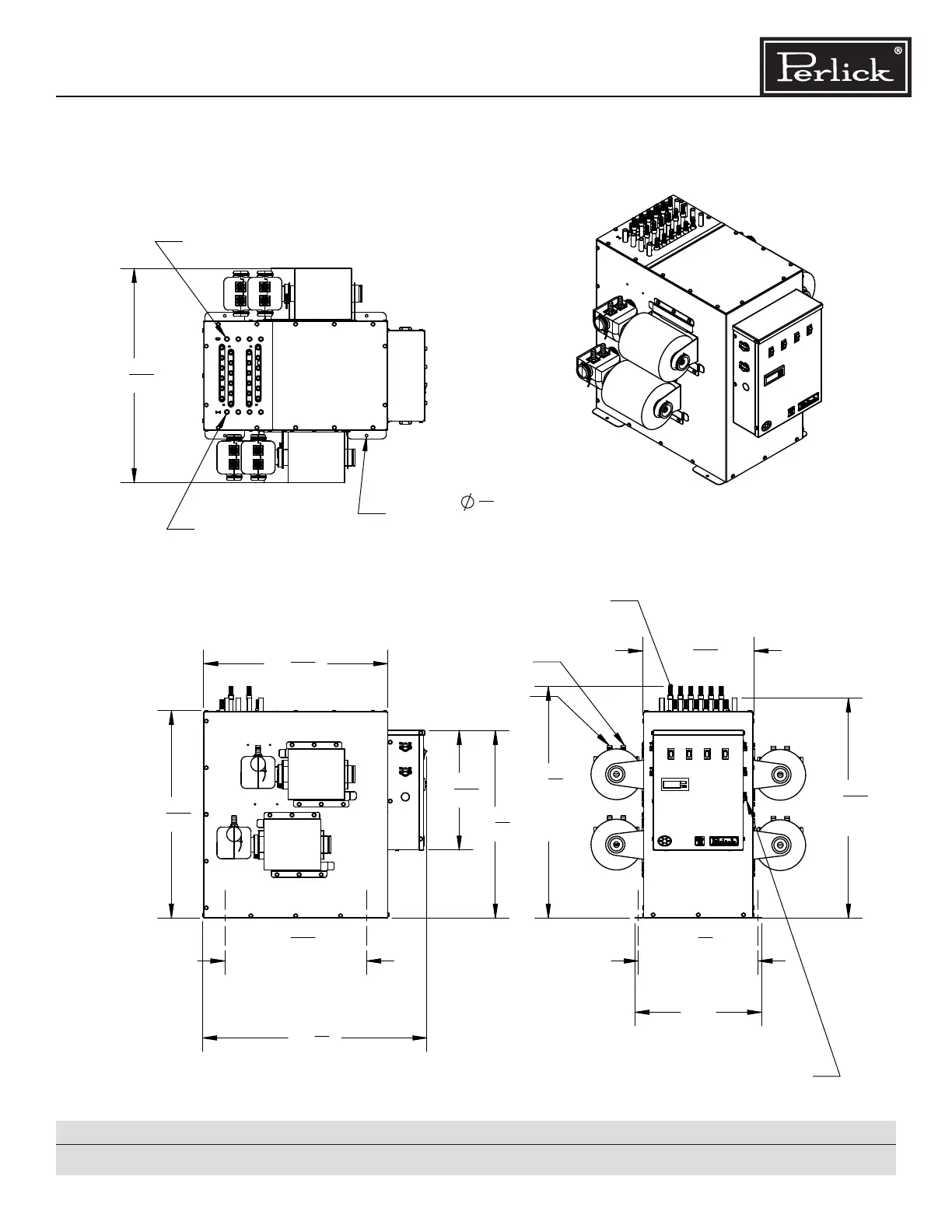

Coolant Deck Overalls
Model GB#
