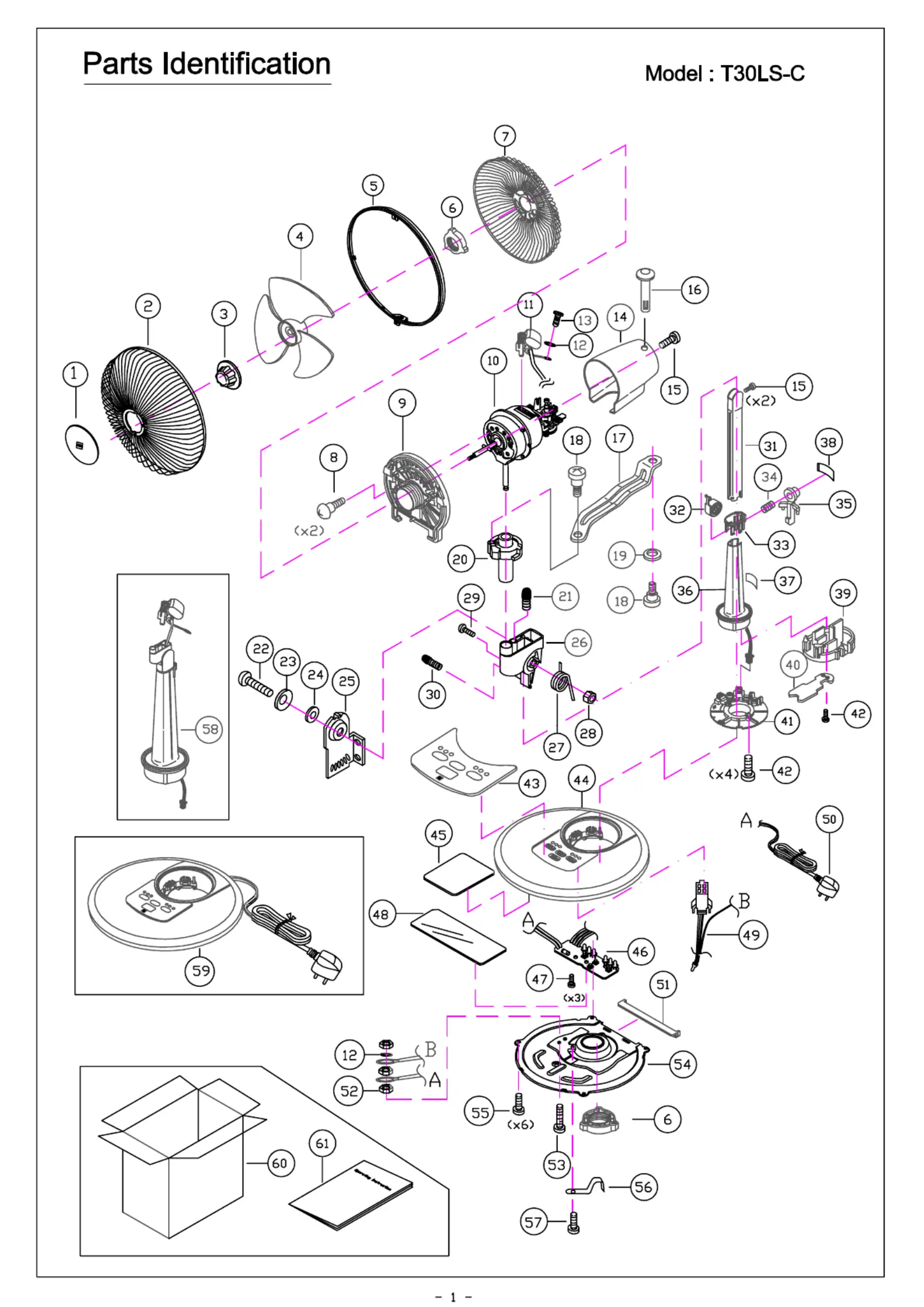

PARTS LIST MODEL : T30LS-C
NO. PART NO. PART NAME Qty NO. PART NO. PART NAME Qty
1 FFE09040301H Guard Mark ( Ivory ) 1 41 FFE04040301H Pole Cover 1
2 FFE09010301H Front Guard (White) 1 42 XTB4+16C Bind Tap Screw 5
3 FFE08079801H Spinner ( Black ) 1 43 FFE04020301H Panel (Ivory) 1
4 FFE08010301H Blade (Crystal L. Gray) 1 44 FFE04010303H Base (Ivory) 1
5 FFE09310301H Guard Ring Assy (Ivory ) 1 45 FFE04310301H PCB Sheet 1
6 FFE02209802H Guard Set Nut 2 46 FFE48000301H Circuit Assy (PCBA) 1
7 FFE09020301H Rear Guard (White) 1 47 XTN4+10C PCB Setting Screw 3
8 FFE02229801H F.O.C Cover Scw 2 48 FFE04360301H Insulation Film 1
9 FFE02210301H Front Outer Cover (Ivory) 1 49 FFE12250301H Earth Wire Assy 1
10 FFE01010302H Motor ( 220-240V ) 1 50 FFE12100301H Power Cord 1
11 FFE03950302H Condenser Lead Assy 1 51 FFE04910301H Edge Cover 1
12 XWA4B Spring Washer 2 52 XNG4FBN Nut 3
13 XSB4+8BN Earth Screw (For Motor) 1 53 XSB4+12BN Bind Screw (For Earth ) 1
14 FFE03200301H Rear Outer Cover (Ivory) 1 54 FFE04990301H Bottom Plate 1
15 XTB4+8FFX Bind Tap Screw 3 55 XTB4+12C Bind Tap Screw 6
16 FFE03069802H Clutch Nut (White) 1 56 FFE12269801H Pole Lock 1
17 FFE03130301H Rod 1 57 FFE04550301H Star Head Screw 1
18 FFE03169801H Rod Setting Screw 2 58 FFE04120304H Pole Set ( Ivory ) 1 Set
19 FFE05089801H Rod Set Washer 1 59 FFE04110304H Base Assembly 1 Set
20 FFE05029801H Upper Part 1 60 FFE80010304H Carton Case 1
21 FFE05330322H Double Osci B&S Assy 1 61 FFE80130302H Instruction 1
22 XST6+18 Truss Scw 1
23 FFE02040301H Washer 1
24 FFE04090301H Conical Washer 1
25 FFE05040301H Holding Plate 1
26 FFE05010301H Knee Joint ( Ivory) 1
27 FFE05420301H Angle Adjust Spring 1
28 FFE04080301H Nylon Nut 1
29 XTT4+10CFX Yoke Set Screw 1
30 FFE05330301H Free Neck B&S Assy 1
31 FFE04520301H Slide Pipe ( Ivory) 1
32 FFE04780301H Slide Spring 1
33 FFE04650301H Pole Cap ( Ivory) 1
34 FFE05720301H Slide Button Spring 1
35 FFE04630301H Slide Button (Ivory ) 1
36 FFE04030301H Pole (Ivory) 1
37 FFE00500303H Name Plate 1
38 FFE04960301H Notice Label 1
39 FFE04530301H Flange 1
40 FFE04540301H Flange Sheet 1
- 2 -
