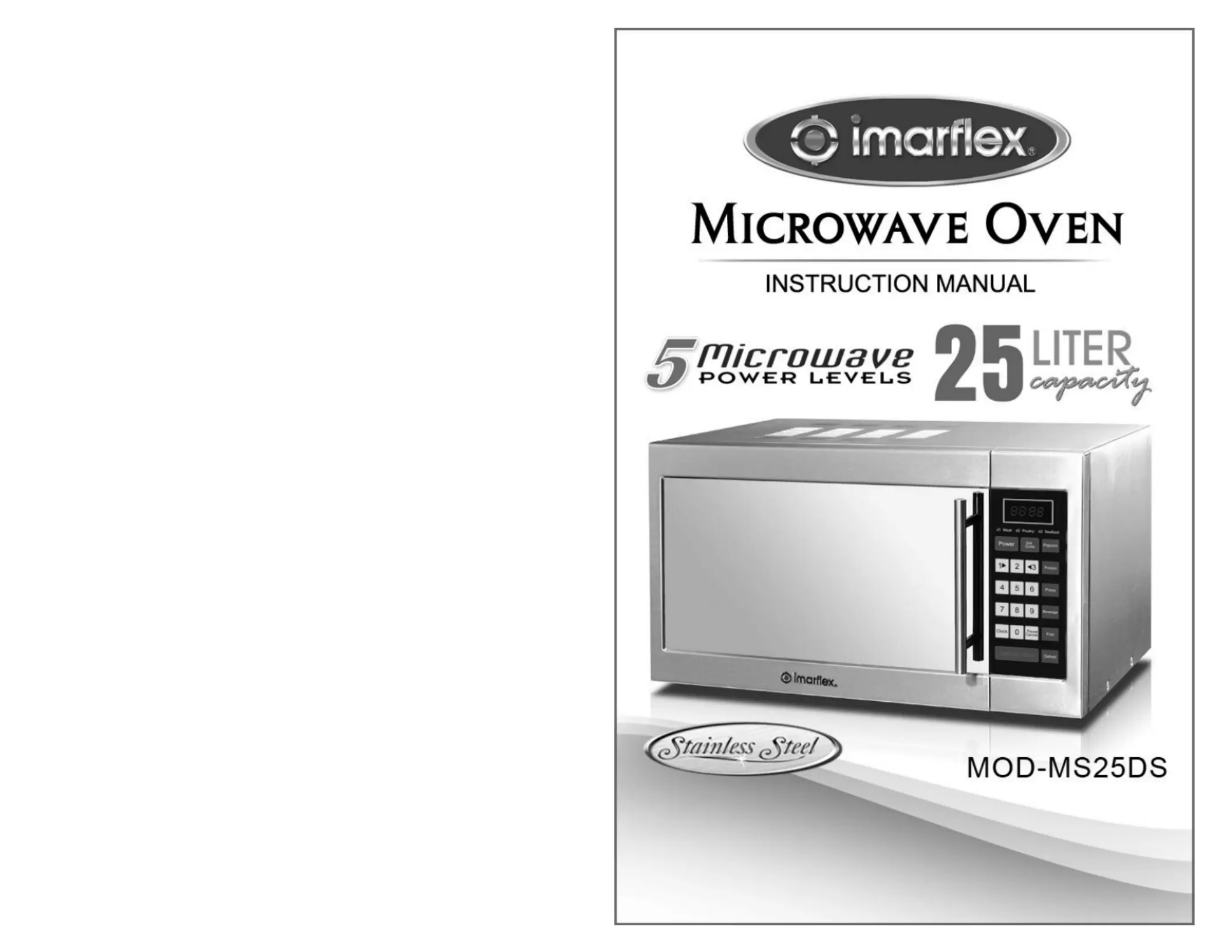

Imarflex MOD-MS25DS Manual
Read below 📖 the manual in Italian for Imarflex MOD-MS25DS (6 pages) in the Magnetron category. This guide has been helpful for 3 people and has been rated 4.5 stars on average by 2 users
Page 1/6
CLEANING & MAINTENANCE
1. Unplug the oven from the wall socket before cleaning.
2. Do not allow food splatters or spilled liquids adhere to oven
walls. Baking soda may be used if the oven gets very dirty.
Avoid using spray and other harsh cleaners as this may stain,
streak, or dull the door surface.
3. Use damp cloth in cleaning the glass window and the surface
of the oven.
4. Do not allow water to seep into the ventilation openings to
avoid damages on the operating parts.
5. Do not allow the control panel to become wet.
6. When cleaning the control panel, leave oven door open to
prevent oven from accidentally turning on.
7. If the steam accumulates inside or around the oven door, dry it
using soft cloth. This may occur when the oven is operated
under high humid conditions, but this is normal.
8. If the glass turntable becomes dirty, remove it and wash it with
soap and water.
9. The roller rest and oven oor should be cleaned regularly to
avoid excessive noise. Simply wipe the bottom part of the oven
with mild detergent. The roller ring can be washed with soap
and water. If the roller rest is removed from the oven, be sure
to return it properly.
.
-9-

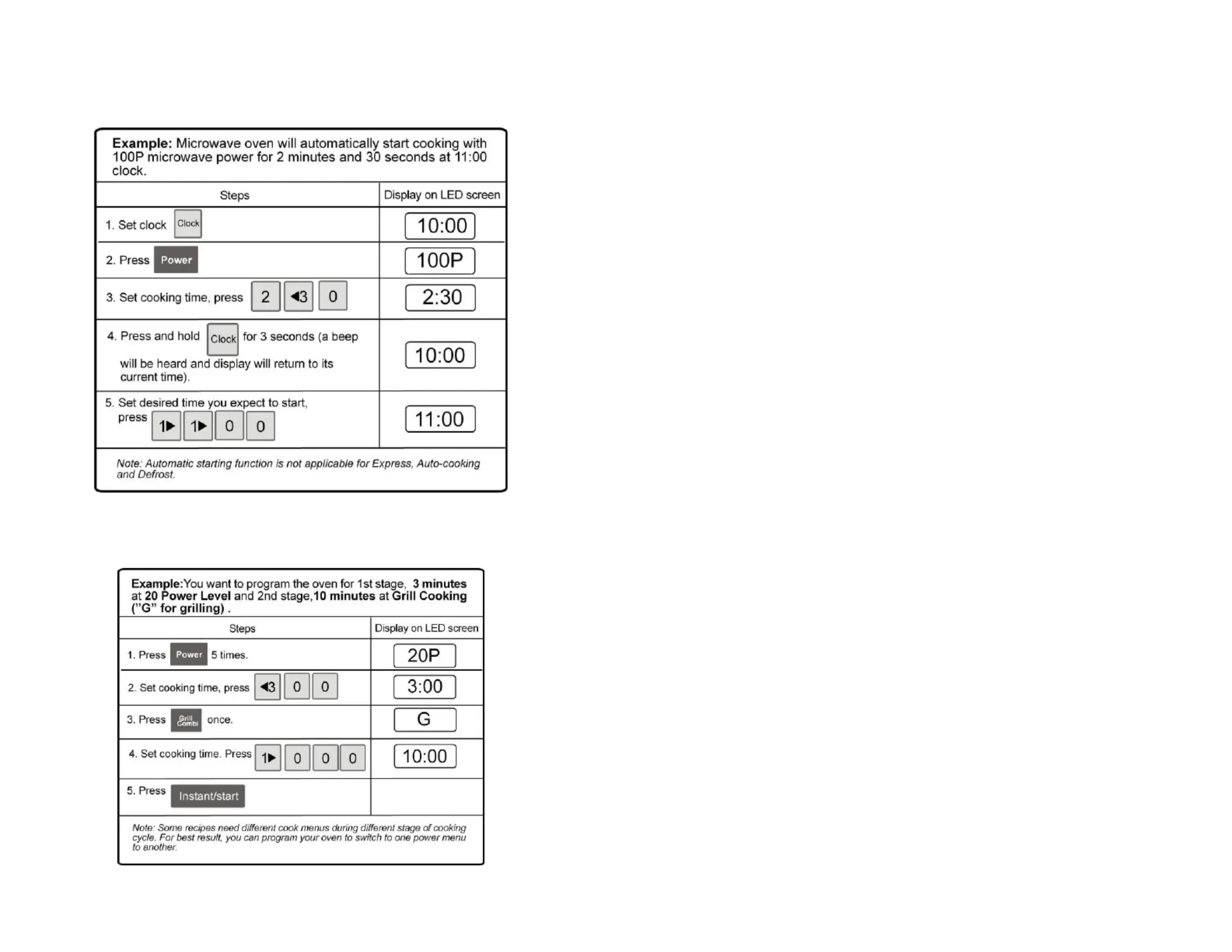

PROGRAM COOKING
The oven has the ability to be programmed to do several functions.
MULTI-STAGE COOKING
-8-
SPECIFICATION
Model No. : MOD-MS25DS
Rated Voltage : 230Va.c. ~ 60Hz
Input Power : 1350W (Microwave)
: 1000W (Grill)
Microwave Output Power : 800W
Microwave Frequency : 2450MHz
Outside Dimension : 280mm(H)x504mm(W)x
335mm(D)
Oven Cavity Dimension : 205mm(H)x328mm(W)x
302mm(D)
Oven Capacity : 25 liters/0.9 cu. ft.
PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE
MICROWAVE ENERGY
1. Do not place any object between the door safety lock system or
allow small solid particles or cleaner residue to accumulate on
sealing surfaces.
2. Do not operate the oven if it is damaged. It is important that the
oven is properly closed and there are no damages like:
a. Bent doors
b. Broken or loosened hinges and latches
c. Leaks on door seals and sealing surfaces
3. The oven should not be adjusted or repaired by anyone aside from
an authorized Imarex service technician.
4. Do not tamper the safety interlocks.
BEFORE BRINGING THE MICROWAVE TO THE CUSTOMER
SERVICE CENTER
If the microwave fails to operate:
1. Check to ensure that the oven is plugged in securely. If not, unplug
the unit, wait for 10 seconds and plug it again.
2. Check for a blown circuit fuse or a tripped main circuit breaker. If
there’s no problem with the supply of electricity, test the outlet with
another appliance.
3. Check to ensure that the control panel is programmed correctly.
4. Check to ensure that the door is properly closed.
INSTALLATION
1. Remove all packaging materials
2. WARNING: Check for any damages, such as misaligned or bent
door, damaged door seals and sealing surface, broken or loose
door hinges and latches. If there is any damages do not use the
oven.
-1-
Product Specifications
| Brand: | Imarflex |
| Category: | Magnetron |
| Model: | MOD-MS25DS |
