Imarflex MOD-CV30DS Manual
Read below đ the manual in Italian for Imarflex MOD-CV30DS (12 pages) in the Magnetron category. This guide has been helpful for 3 people and has been rated 4.5 stars on average by 2 users
Page 1/12
SPECIFICATION
Voltage : 230Va.c. ~ 60Hz
Input Power 1 W(Microwave)/1000W(Griller)/ : 400
1300W(Convection)
Rated Microwave Power Output : 900W
Microwave Frequency : 2450MHz
Outside Dimension : 502(W) x 306(H) x 508 (D)
Oven Cavity Dimension : 350(W) x 215(H) x 330 (D)
Oven Capacity : 25 liters/0.8 cu. ft.
OPERATION THEORY OF MICROWAVE OVEN
1. Microwave is a kind of high frequency electromagnetic wave, which is commonly
distributed in the nature. But the existing form of microwave is dispersed so that it cannot
be collected together for heating purpose. The key component of magnetron of
microwave oven will transform the energy of electricity to microwave and huge energy of
microwave îeld is established under the closed cavity. So the molecule of food is caused
to vibrate at very high speed and the friction heat produced will cook the food in a fast
way.
2. There are 3 properties of microwave:
a. Absorbability: Microwave can cause the excess vibration of molecule on various
food so as to obtain the heating purpose. But the infiltration ability is largely
depending on the size, thickness and properties of the food.
b. Penetrability: Microwave can penetrate through ceramics, glass, temperature-
resistant plastics. It is required to use the containers whose material have good
microwave penetrability to achieve best heating result. Please see the below
Cookware Guide.
c. Reîectivity: Microwave would be reflected by the metal wall of interior cavity so
as to establish an even magnetic field, thus can prevent the overheating of partial
area.
INSTALLATION OF MICROWAVE OVEN
1. To ensure suîcient ventilation, the distance from the back of microwave to the wall
should be above10cm, the side to the wall above 5cm, the top to the ceiling above 20
cm.
2. Do not place any objects on the top of microwave oven.
3. Keep the microwave oven far from the TV, Radio or antenna as picture disturbance or
noise may occur.
4. Keep the plug accessible to the socket.
5. This is designed as a freestanding style and should not be placed in a cabinet.
COOKWARE GUIDE
1. Ideal material should be transparent to microwave. Use clear or plain white cookware. It
allows energy to pass through the container and heat food.
2. Do not use reflective materials such as stainless steel, aluminum foil, etc.
3. Do not use recycled paper products as they may contain small metals that can cause
sparks or fire.
4. Use round containers rather than oblong and square containers because food in corners
tend to be overcooked.

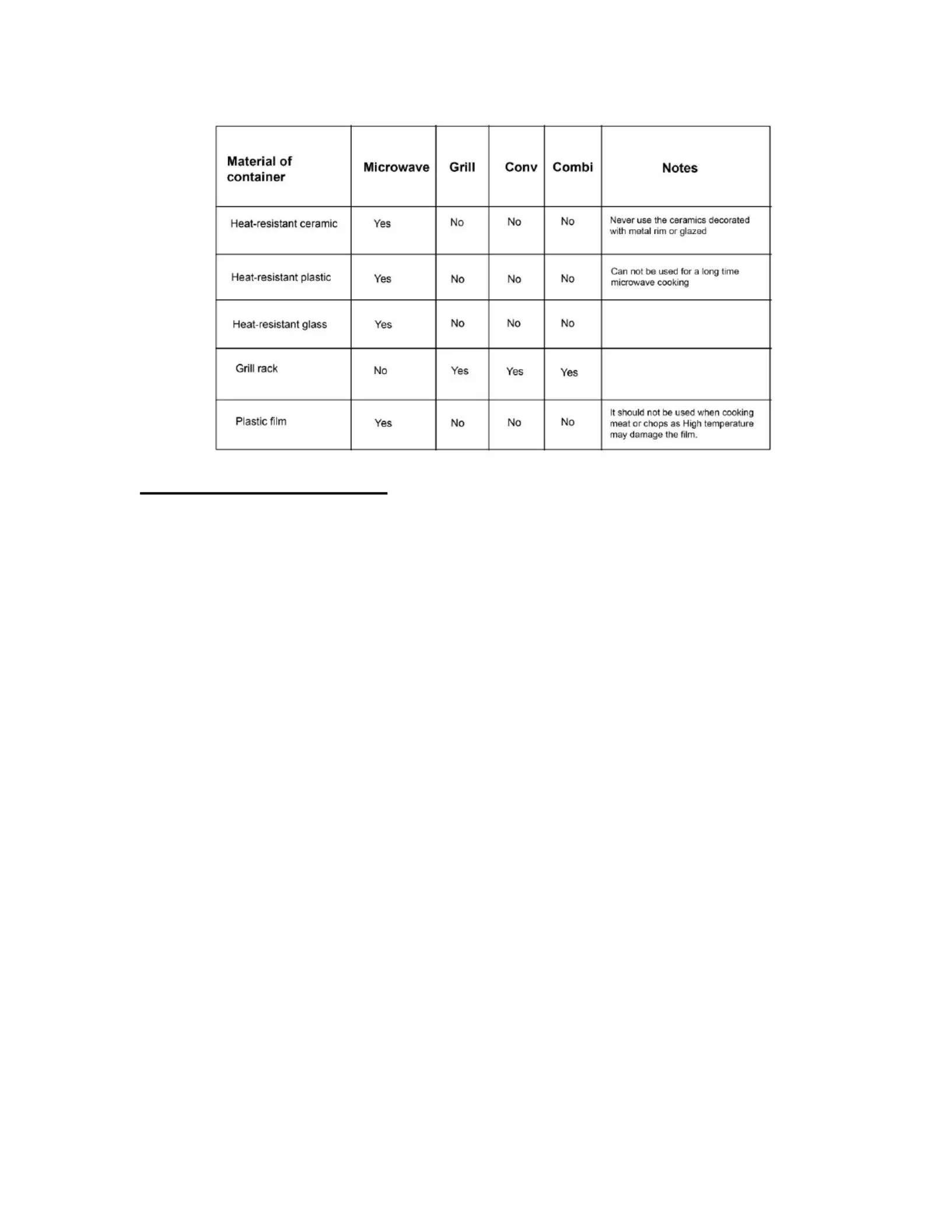

5. Use the table below as reference.
IMPORTANT SAFEGUARDS
When using electrical appliance, basic safety precaution should be followed, including the
following:
1. Read all instructions carefully.
2. Before using the unit, check if the voltage indicated corresponds with the convenience
outlet (230Va.c.).
3. Do not use any appliance with a damaged cord or plug. If the cord is damaged it should
be replaced with the same type and size or bring the unit to the nearest authorized
service center.
4. Use the oven only for its intended use or as described in this manual. Do not use
corrosive chemicals. This oven is not designed for industrial and laboratory use.
5. Do not operate the oven if empty.
6. Close supervision is necessary when any appliance is used by or near children.
7. To reduce the risk of fire in the oven cavity:
a. When heating food in plastic or paper containers, check the oven frequently for
possible ignition.
b. Remove wire twist-ties from paper or plastic bags before placing the bag in the
oven.
c. Do not use the Microwave Oven cavity for storage purposes.
d. Do not use sealed containers since they may burst, use only microwave
containers.
