Owner’s Manual

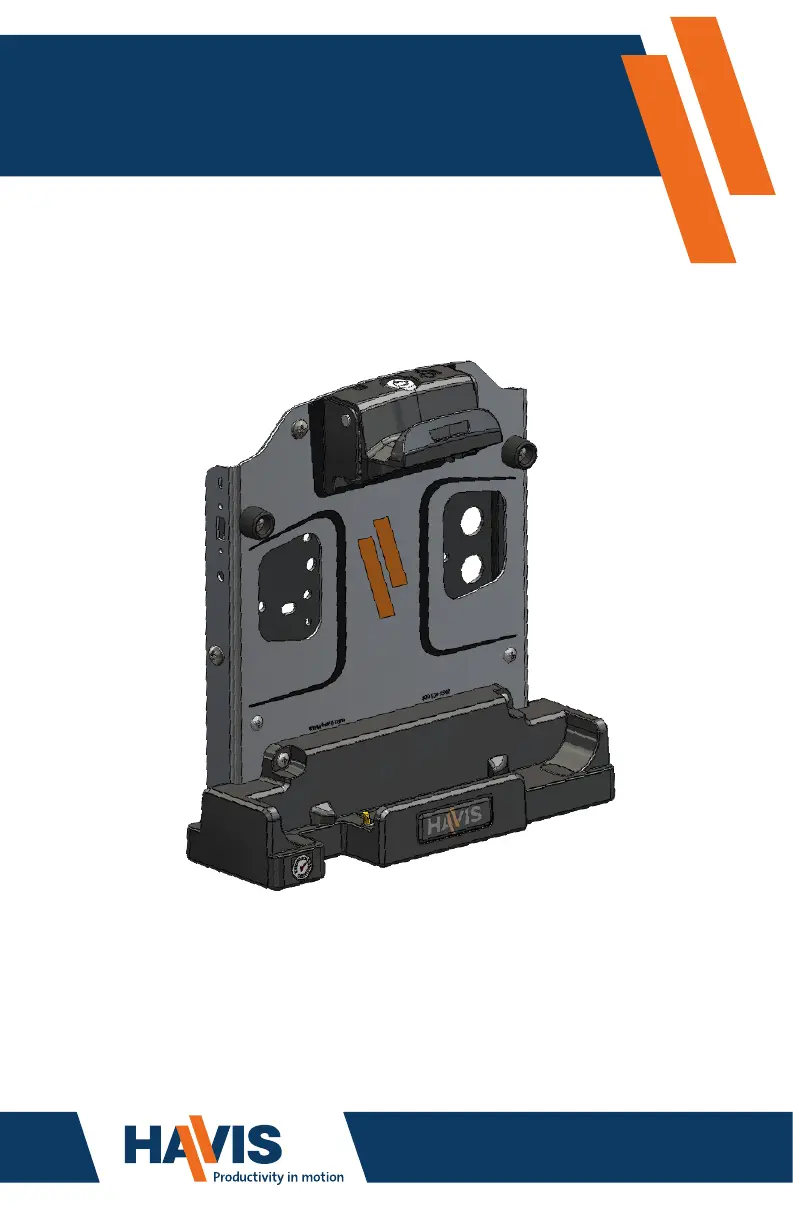

Havis Docking Station
For Panasonic Toughbook H2
www.havis.com
1-800-524-9900
DS-PAN-601
DS-PAN-602
DS-PAN-603
DS-PAN-600 Series
DS-PAN-601
DS-PAN-602
DS-PAN-603
Before Beginning (Original Instructions)
2
• NEVER STOW OR MOUNT THE DOCKING STATION DIRECTLY IN A VEHICLE
AIRBAG DEPLOYMENT ZONE.
• DO NOT USE COMPUTER WHILE DRIVING.
• READ ALL INSTRUCTIONS THOROUGHLY BEFORE BEGINNING INSTALLATION.
Havis is pleased to provide this Owner’s Manual to aid in the proper
installation and use of the DS-PAN-600 Series Docking Station for
the Panasonic Toughbook H2.
For questions regarding the set-up of your DS-PAN-600 Series Docking Station,
please contact Havis at 1-800-524-9900 or visit www.havis.com for additional
product support and information.
This Owner’s Manual applies to the following Part Numbers:
• FOR DOCKING STATION MODELS EQUIPPED WITH AN INTEGRATED POWER SUPPLY
(DS-PAN-602) REFER TO THE SUPPLIED LIND POWER SUPPLY REFERENCE GUIDE.
Optional Accessories
EC DECLARATION OF CONFORMITY in accordance with EN 45014
Manufacturers Name: Havis, Inc.
Manufacturers Address: 47801 Anchor Court, Plymouth Twp, MI 48170 USA
Declares under our sole responsibility that the product:
Product name: Havis Docking Station For Panasonic Toughbook H2
Model: DS-PAN-60X, where ‘X’ may be any alphanumeric character and which describes product options.
May be followed by any alphanumeric characters which describe product options.
Product Options: This declaration covers all options of the above product which bear the CE Marking.
Is in conformity with the following standards or other normative documents:
EMC Directive 2004/108/EC: EN 55022:2010, Class B, Information technology equipment -
Radio disturbance characteristics - Limits and methods of measurement
EN 55024:2010, Information technology equipment - Immunity characteristics -
Limits and methods of measurement
Directive 2011/65/EU Restriction of the use of certain hazardous substances (RoHS)
Supplementary Information:
The product herewith complies with the requirements of the EMC Directive 2004/108/EC. This product requires the
use of the provided e-Marked automotive power supply when used within vehicles.
Plymouth twp, MI, USA August 1, 2012 Bruce Jonik, Director of Engineering , Havis, Inc.
FCC 47CFR, Part 15 compliance: This is an FCC Class B device. Any changes or modications
to the model DS-PAN-60X not expressly approved by Havis, Inc. could void
the user's authority to operate this equipment.
www.havis.com • 1-800-524-9900
Table of Contents
3
Specications
Parts Included
Port Replication Capability
Installation
Cable Management
Operation - Docking
Operation - Undocking
3
4
5
6
7
9
10
Specications
Power Supply Input 15.6V DC-In
Dimensions 11.3” ( 28.7 cm) W x 4.0” ( 10.1 cm ) D x 11.8” ( 30.0 cm ) H
Weight 4.6 lbs ( 2.1 kg )
Operating Environment -20° C to 60° C ( -4° F to 140°F )
Storage Environment -40° C to 85° C ( -40° F to 185° F )
• Do not place metal objects or containers of liquid on top of the Docking Station
• If a malfunction occurs, immediately unplug the Power Supply and remove the laptop
• Use only the specied Power Supply (Part # LPS-102) with this Docking Station
• Do not store the Docking Station where water, moisture, steam, dust, etc. are present
• Do not connect cables into ports other than what they are specied for
• Do not leave the Docking Station in a high temperature environment (greater than 85°C, 185°F)
for a long period of time
Precautions
Product Specifications
| Brand: | Havis |
| Category: | Cradle/docking station |
| Model: | DS-PAN-601 |
