WARNING:
Turn Power OffElectrical Danger
All electrical components must be
installed by a licensed electrician
in accordance with the National
Electric Code and the appropriate
local electrical codes.
RAMA

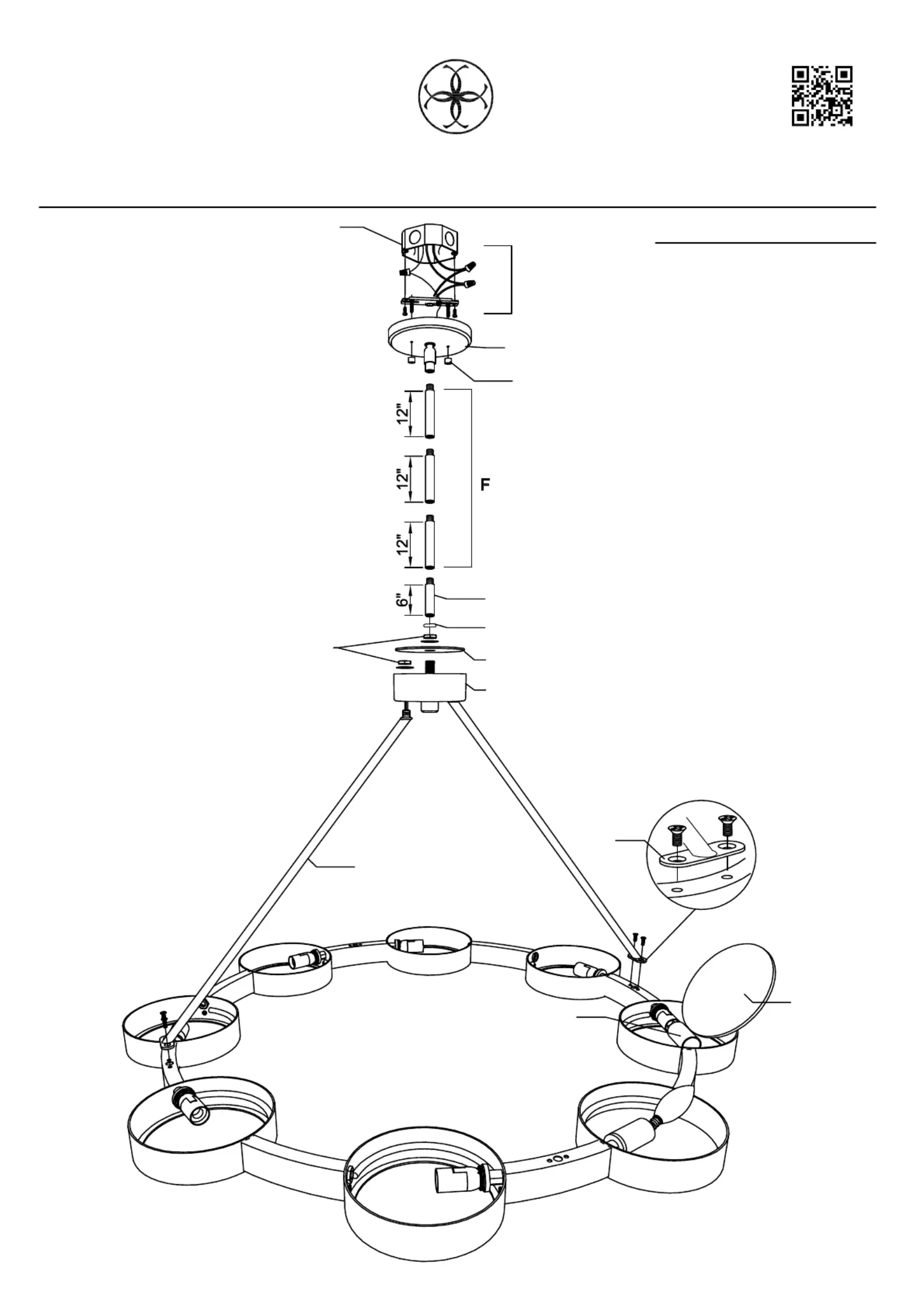

ASSEMBLY INSTRUCTION MODEL #ORS-738-MG-ST
How to Install
1. Attach one end of the rod onto the
frame with screws by aligning the
holes on the tab with the holes on the
band ring..
2. Attach other end of rod to top
distributor box. Secure it with washer
and hex nut.
3. Place the metal plate over top
distributor box and secure with
washer and nut. Place the cap over
the hex nut.
4. Determine correct length of stem
needed for hanging height.
5. Slip the wire through the stems and
connect them togetther.Screw one end
of the stem assembly onto the fixture
body and the other end onto the
swivel on the canopy.
6. Attach mounting plate to the
outletbox using box screws. Connect
the fixture wires to the supply wires.
7. Mount the fixture to the outlet box
with ball nuts.
8. Unscrew the candle sleeve from the
socket, Gently insert the stone along
the edge of metal ring onto the bottom
of ring.
9. Screw Candle Sleeve back onto
socket.
10. Install the bulb (Not included) in
accordance with the fixture s’
specifications. (DO NOT EXCEED
THE MAXIMUM WATTAGE RATING!)
This product can expose you to Lead,WARN ING:
which is known to the Sta te of Ca lifo rnia to cause cancer
and/or birth defects or reproductive harm. For more
information go to www.P65 Warnings.ca.gov
CSA841808DAMR2

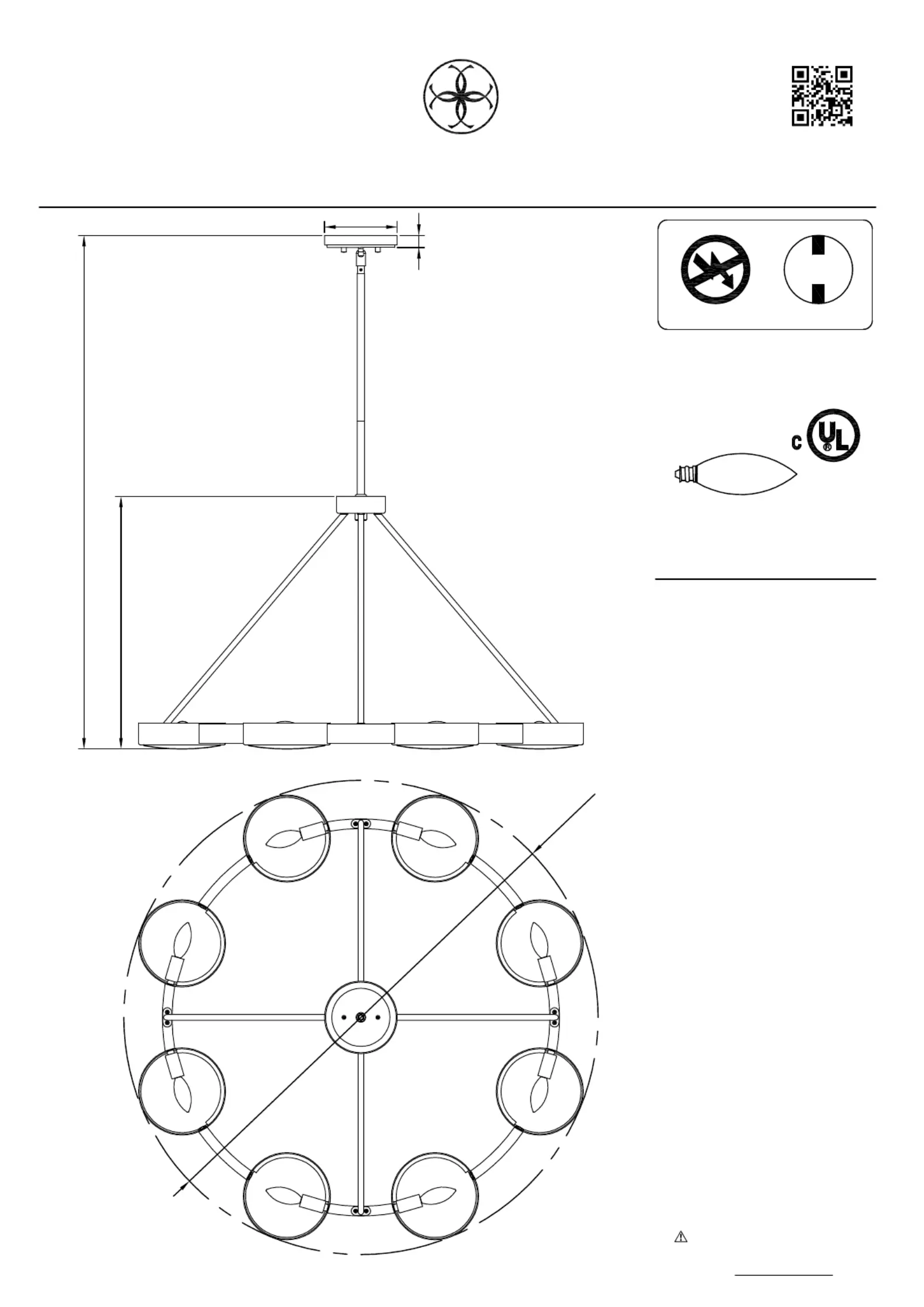

Ø6"
You will need 8 - Candelabra Bulb
40 Watts Recommended 60 Watts Max.
USE LED BULBS FOR EXTENDED USE
This fixture is Dry Rated.
1"
21 1/2"
24 1/8~66 1/8"
Ø38 1/2"
Crystorama.com
OUTLET BOX
A
Part Number
L I G H T I N G T H E W A Y F O R S I X T Y Y E A R S
CRYST RAMA
PART NUMBER MODEL #ORS-738-MG-ST
CSA841808DAMR2
B
D
J
K
Part Numbers
A. Mounting Hardware
(3) - Wire connector
(1) - Mounting Plate
(2) - Box Screws
(1) - Grounding Screw
B. (2) - Ball Nuts;XVE733MGBANUT
C. (8) - Stone; 6-3/4" x H1/2";Ø
XVE733STONE
D. (1) - Canopy; 6" x H1";Ø
XVE734MGCAN6IN
E. (1) - 6"Stem; XVE734MGSTEM6IN
F. (3) - 12"Stem; XVE734MGSTEM12IN
G. (1) - Rod;11.7 x 575MM
H. (1) - Top distributor box
I. (1) - Metal plate
J. (1) - Check ring
K. (8) - Candle Sleeve; 1-1/8" x H2"Ø
G
H
I
Hex nut
Tab
Crystorama.com
E
C
Insert the stone
in this diirection
