ASSEMBLY INSTRUCTION MODEL # OAK-7538-SG
How to install
24.5"
USE LED BULBS FOR EXTENDED USE
17"
3.35"
102.5"
22.3"
16.3"
For Hanging:
THIS FIXTURE IS DAMP RATED
Crystorama com.
Fixture uses 8-LED G9 Bulb 3.5 Watts
Max (Included)
1.Using a screw driver, remove the three
screws on the top of tubing ring inside
the frame.
2.Take the tubing ring out and install the
LED G9 bulbs (included) then tighten
with the previously removed screws.
3.Loosen the hook and loop on both ends
of the long hang rod to feed the wire
throught it and long rod. Screw the
hook and loop back onto the hang rod
when the wires are fully passed through
it.
4.Hook one end of the rod onto the loop
inside the frame and the other end onto
the hook kit.
For Ceiling:
1.Repeat step: # 1-2 above.
2.Remove the fixture loop from hook it. Tighten the hook kit onto
the canopy (with small hole) with hex nut.
3.Remove t he hook and loop from ends of long rod and set them
aside with the short rod.
4. Feed the wire through the hook and short rod and loop , in that
order and tighten them together when the wire is fully passed
through them.
5.Hook one end of the short rod onto the loop inside the frame and
the other end onto the canopy w/hook kit.

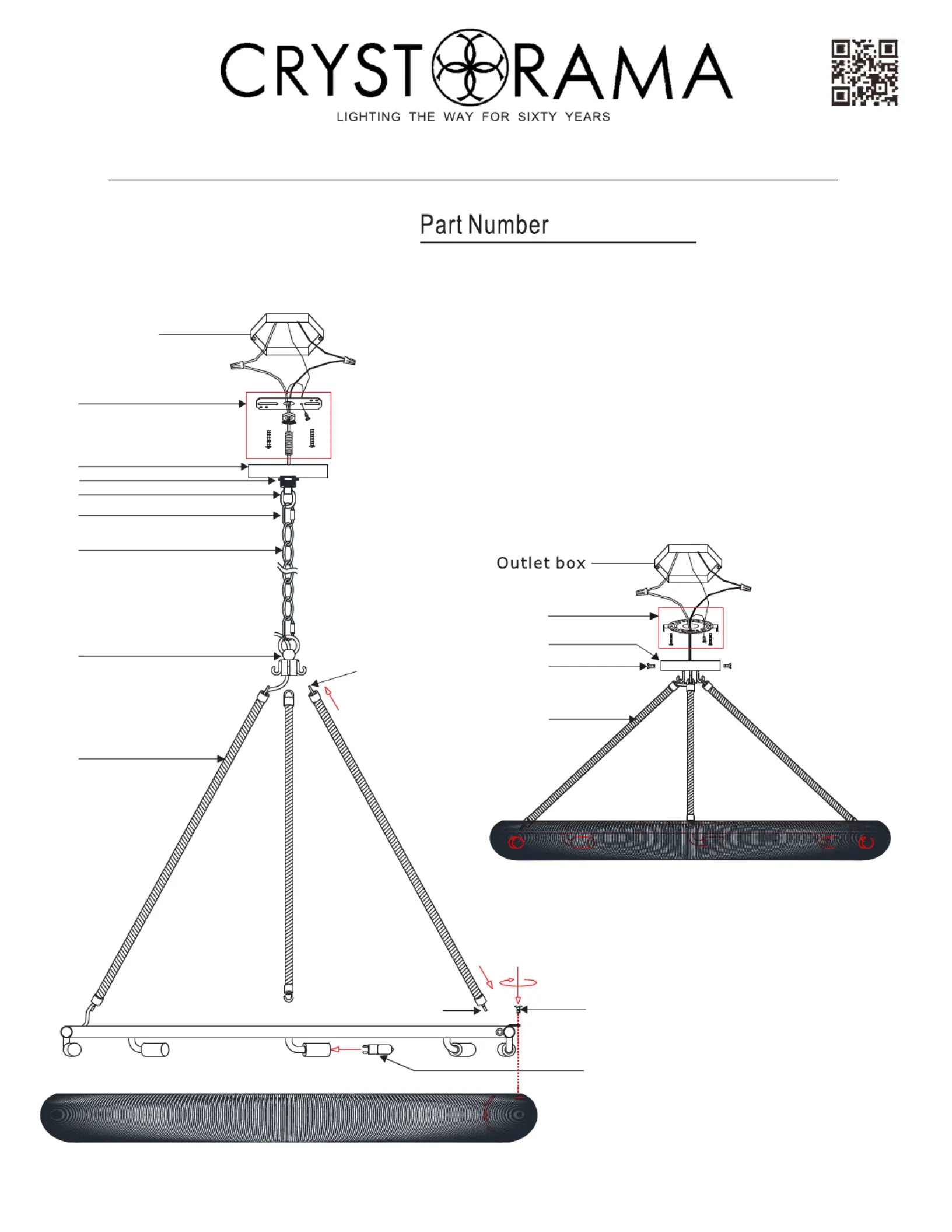

MODEL # OAK-7538-SGPART NUM BER
Outlet Box
A
B
D
F
I
G
H
E
K
L
I
M
Crystorama com.
A. (1) - Mounting Hardware1
B. (1) - CanopyA(W4.7",H0.78",Hole size 26mm) #XRE7536SGCAN4.75IN1
C. (1) - Collar Ring
D. (1) - Collar Loop
E. (2) - Quick Link
F. (1) - Hanging Chain(72",4.0mm) 4MM#XRE7538SGCHA
G. (1) - Hoop Kit
H. (3) - Long Rod(22",9.3mm) #XRE7538SGSTEM22IN
I. (5) - Screw
J. LED G9 Bulb(8) -
K. (1) - Mounting Hardware2
L. (1) - CanopyB(W4.7",H0.78",Hole size 10.5mm) #XRE7536SGCAN4.75IN2
M. (3) - Short Rod(16",9.3mm) #XRE7538SGSTEM16IN
C
J
Loop
Hook
